Description

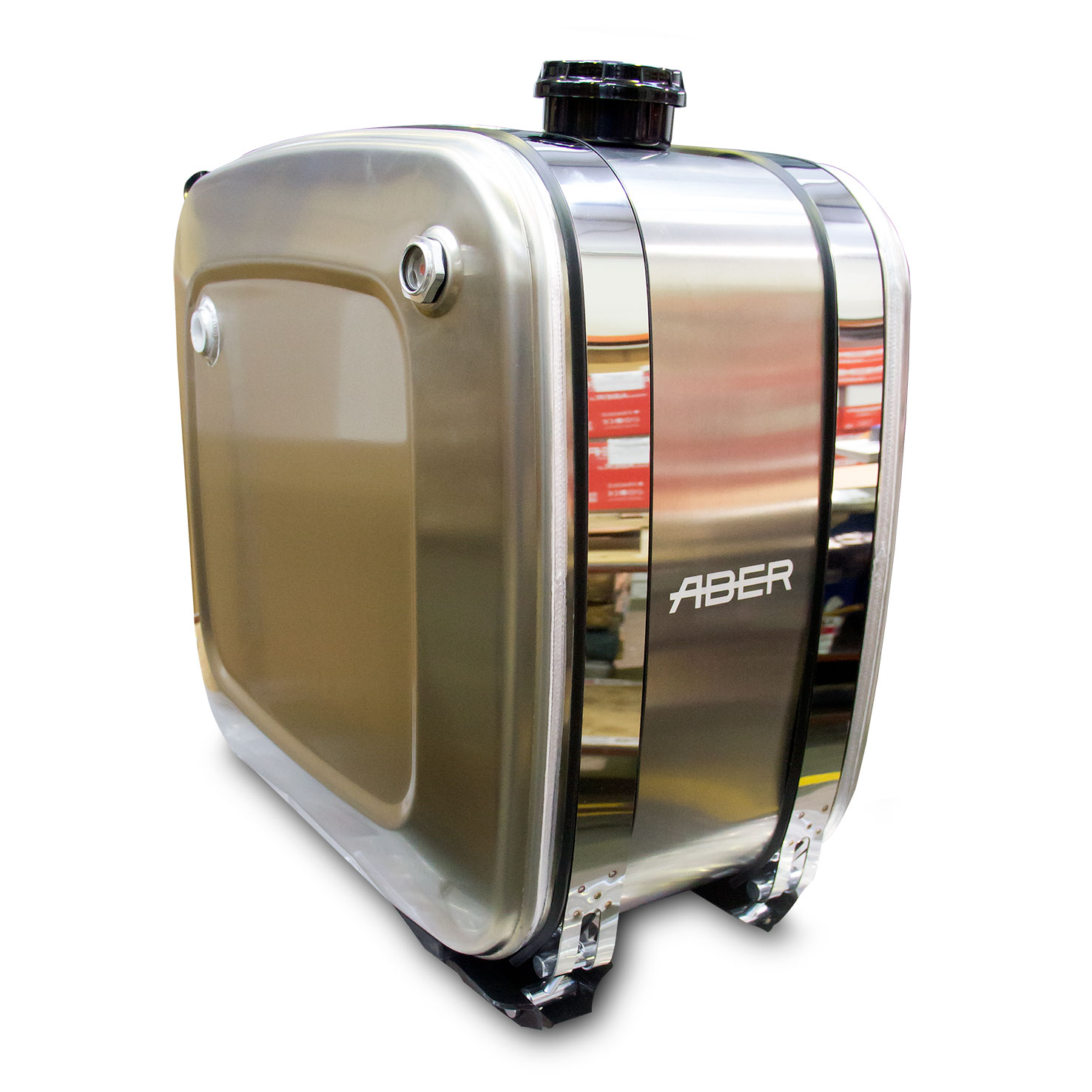

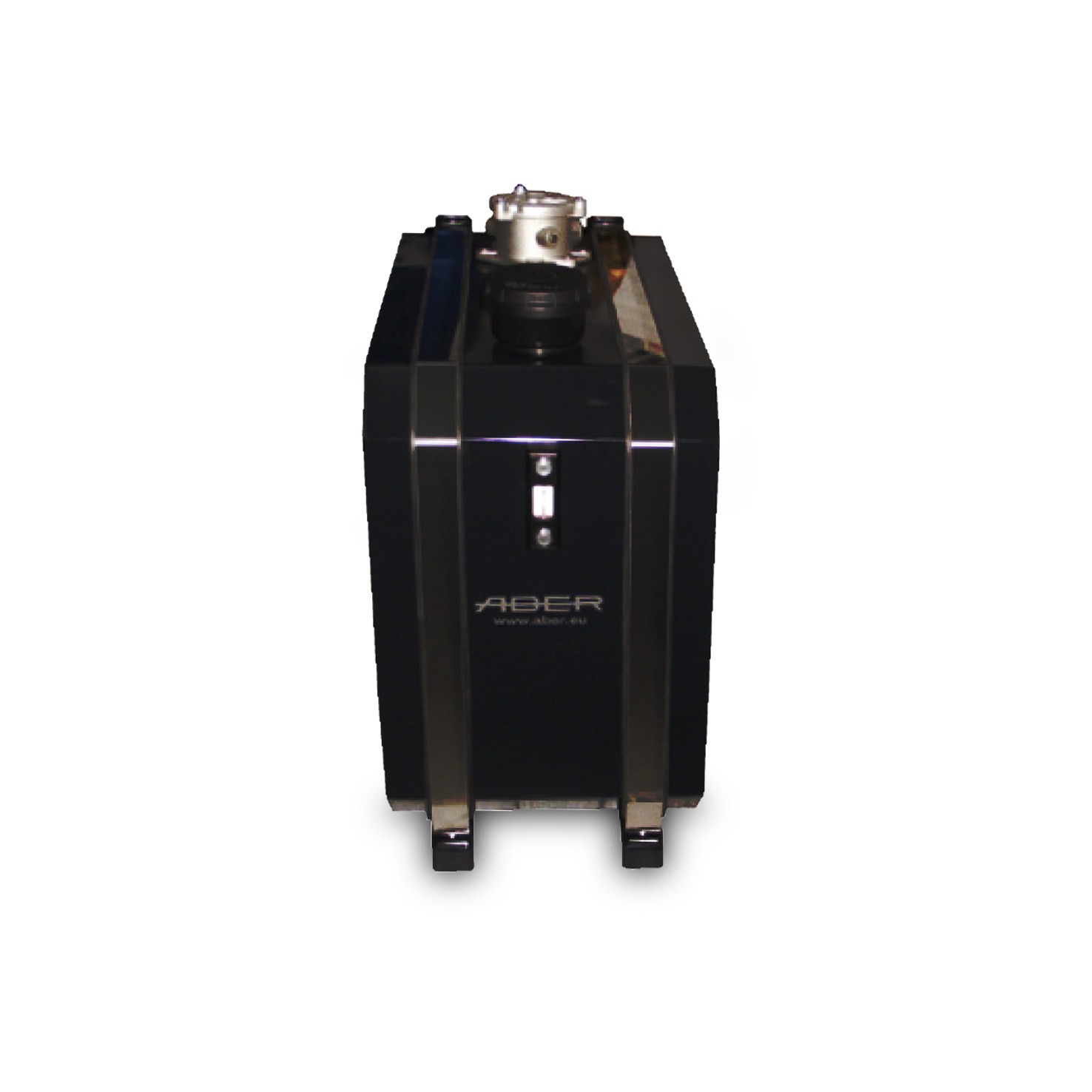

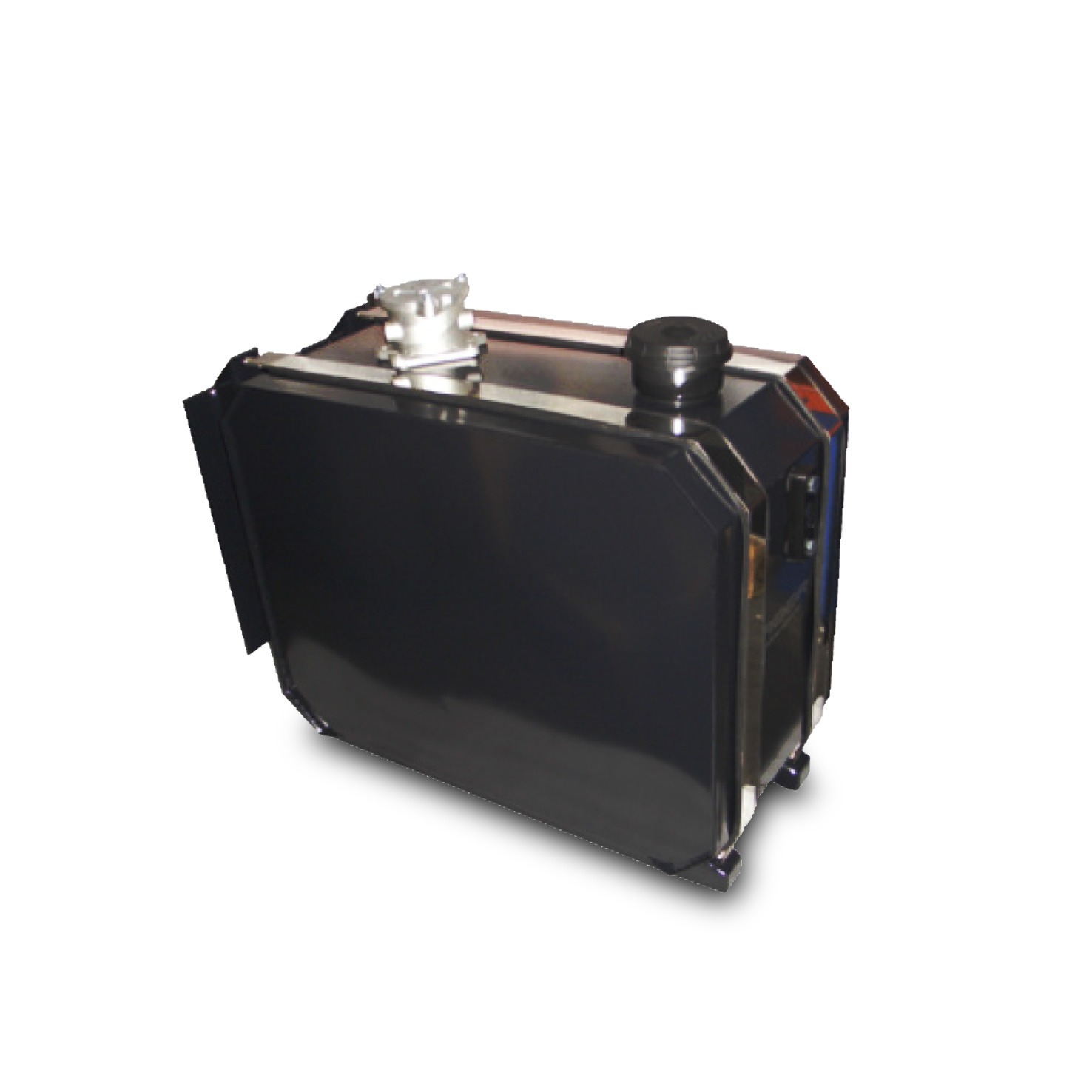

Hydraulic Side Mounting Oil Tank – TSB Series from ABER is available on request with many other configuration and volumes.For non standard dimensions please contact us.
| Capacity (Liters) | Material | A (mm) | B (mm) | C (mm) | Suction Pipe *BSP |
|---|---|---|---|---|---|
| 80 | FE - AL - IX | 510 | 290 | 640 | 1" 1/2 |
| 100 | FE - AL - IX | 510 | 350 | 640 | 1" 1/2 |
| 130 | FE - AL - IX | 550 | 360 | 710 | 1" 1/2 |
| 160 | FE - AL - IX | 550 | 450 | 710 | 1" 1/2 |
| 200 | FE - AL - IX | 550 | 560 | 710 | 1" 1/2 |
| 201 | AL | 620 | 500 | 710 | 1" 1/2 |
| 250 | FE - AL - IX | 550 | 700 | 710 | 1" 1/2 |
| Reference | Standard Capacity | Material | Level Indicator | Filter and Breather | Mounting Options | Support | Optionals |
|---|---|---|---|---|---|---|---|
| TSB | 80L | FE | R | N | 0 | S1 | M |
| 100L | AL | L | FB | 1 | S2 | ||
| 130L | IX | 1A | |||||
| 160L | 2 | ||||||
| 200L | 3 | ||||||
| 250L | 4 |
Example: TSB 160 FE L FB S1 M
Tank with 160 liters, Side Mounting with Brackets, made in Steel, with Long Optical Oil Level, Filler Cap with Integral Air Filter, Tank Top Return Filter (Single),
CODES DESCRIPTION
- FE – Steel
- AL – Aluminium
- IX – Stainless Steel
- R – Round Oil Level Indicator
- L – Long Optical Oil Level Indicator
- N – Ready for filler CAP Plug
- FB – Filler CAP Breather Plug with integral air filter
- 0 – Ready for Tank top oil return filter or flange for valve
- 1 – Tank Top Oil return filter single port
- 1 A – Tank Top Oil return filter double port
- 2 – Flange to Pneumatic Distributor and Oil Filter (Distributor not included)
- 3 – Flange to Electrical Distributor and Oil Filter (Distributor not included)
- 4 – Direct Oil Return
- M – Manometer for Return Filter
