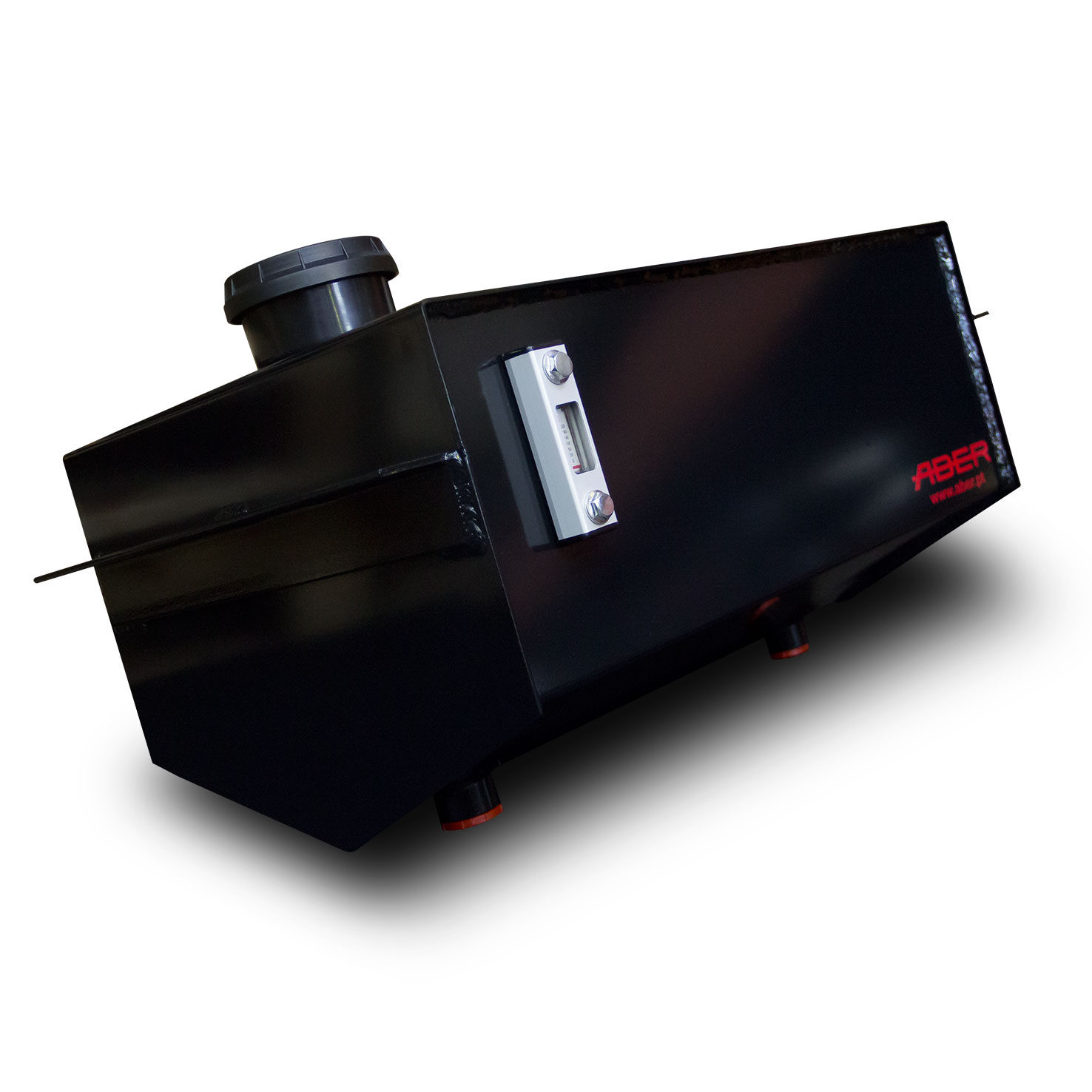

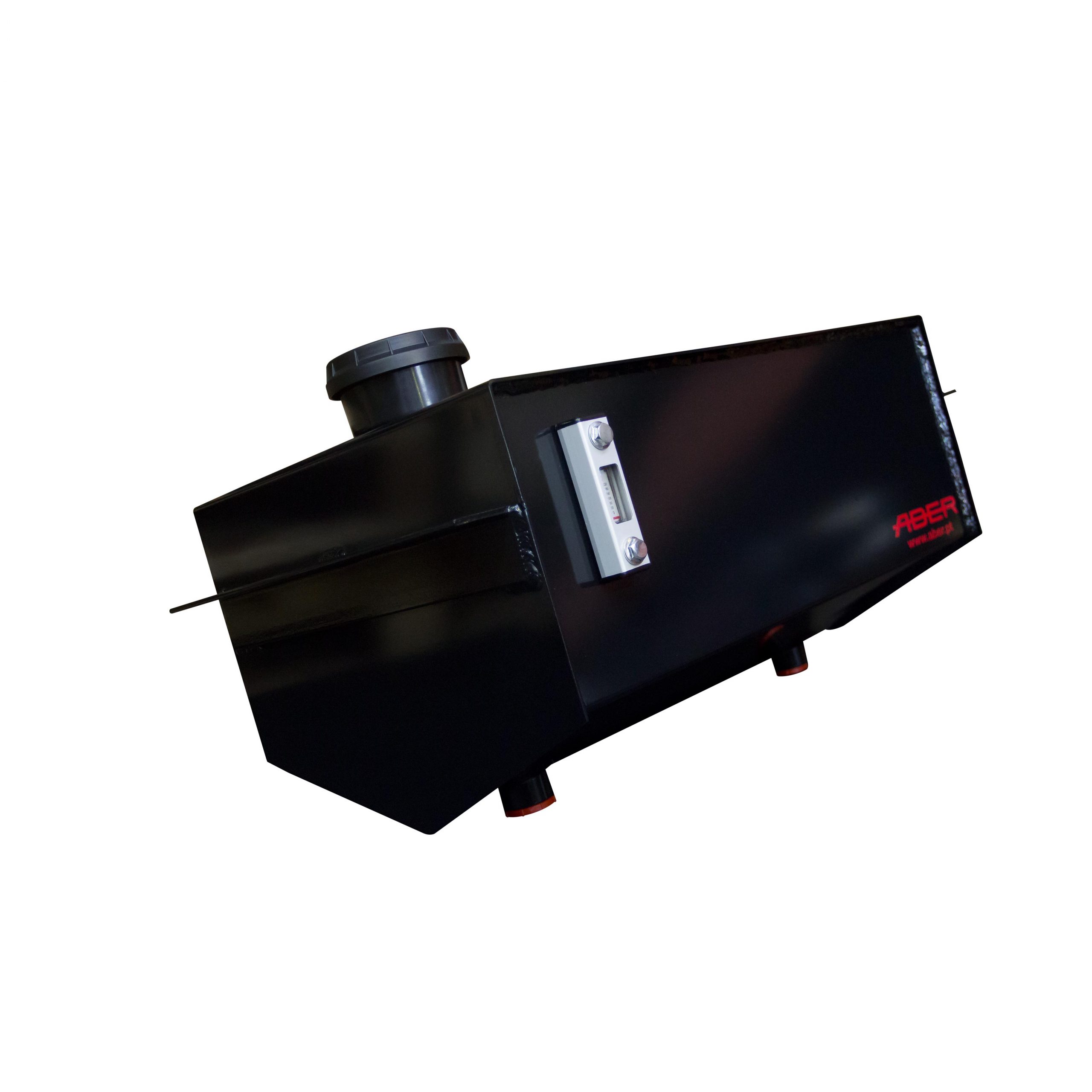

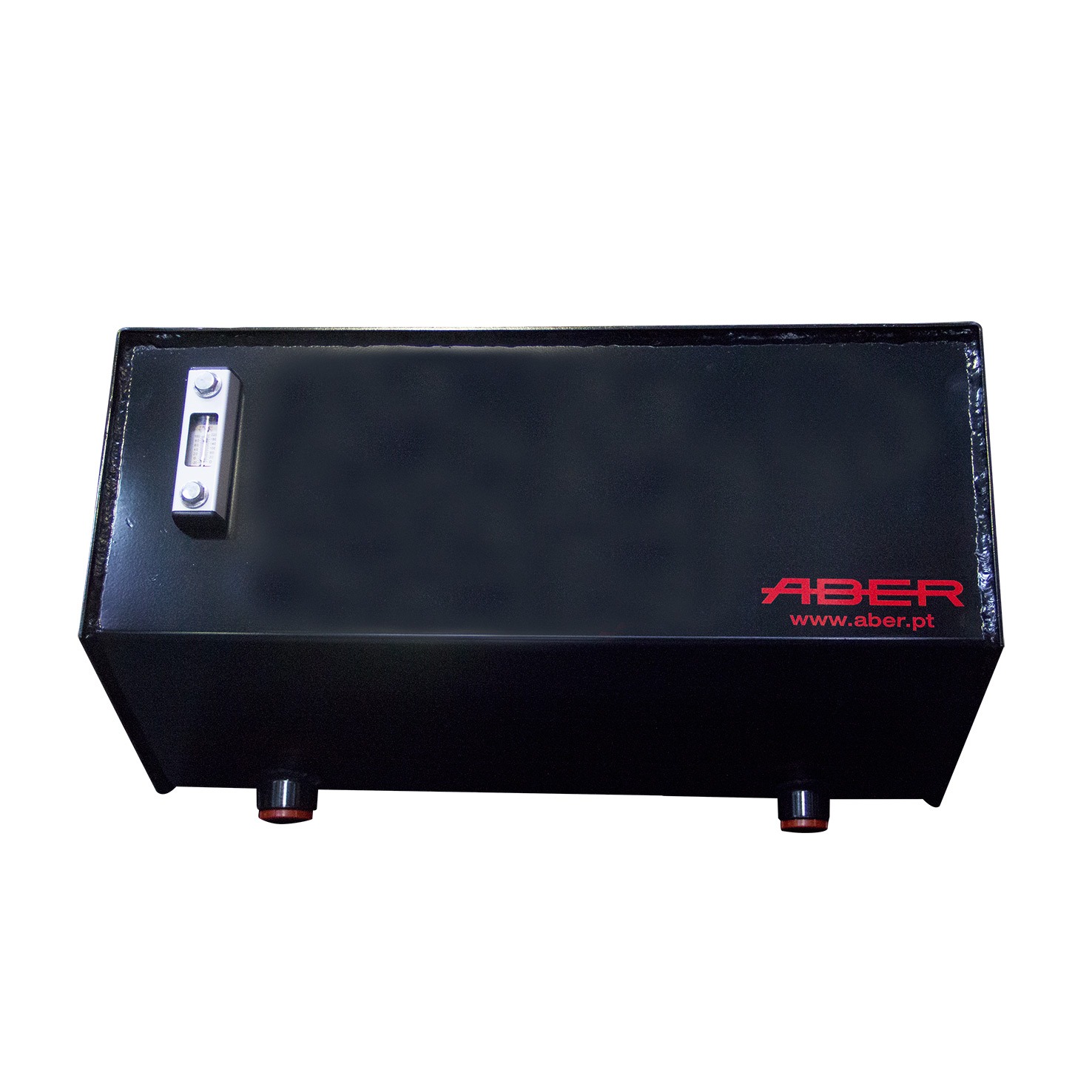

Chassis Mounting V Bottom Type Oil Tank

//Chassis Mounting V Bottom Type Oil Tank

Chassis Mounting V Bottom Type Oil Tank

Standard Capacity *

Material *

Level Indicator *

Filter and Breather *

Mounting Options *

Optionals

SKU: TCV Category: Tags: ,

Description

On request many other configuration and volumes can be produced. For non standard dimensions please contact us.

Capacity (Liters)MaterialA (mm)B (mm)C (mm)Suction Pipe *BSP
35FE - AL - IX2903804001" 1/4
45FE - AL - IX2903805101" 1/4
65FE - AL - IX3004006001" 1/4
ReferenceStandard CapacityMaterialLevel IndicatorFilter and BreatherMounting OptionsOptionals
TCV35LFERN0M
45LALLFB1
65LIX1A
2
3
4

Example: TCV 35 FE L FB 4

Tank with 35 liters, Chassis Mounting V Bottom Type, made in Steel, with Long Optical Oil Level, Filler Cap with Integral Air Filter, Direct Oil Return;

CODES DESCRIPTION

  • FE – Steel
  • AL – Aluminium
  • IX – Stainless Steel
  • R – Round Oil Level Indicator
  • L – Long Optical Oil Level Indicator
  • N – Ready for filler CAP Plug
  • FB – Filler CAP Breather Plug  with integral air filter
  • 0 – Ready for Tank top oil return filter or flange for valve
  • 1 – Tank Top Oil return filter single port
  • 1 A – Tank Top Oil return filter double port
  • 2 – Flange to Pneumatic Distributor and Oil Filter (Distributor not included)
  • 3 – Flange to Electrical Distributor  and Oil Filter (Distributor not included)
  • 4 – Direct Oil Return
  • M – Manometer for Return Filter
