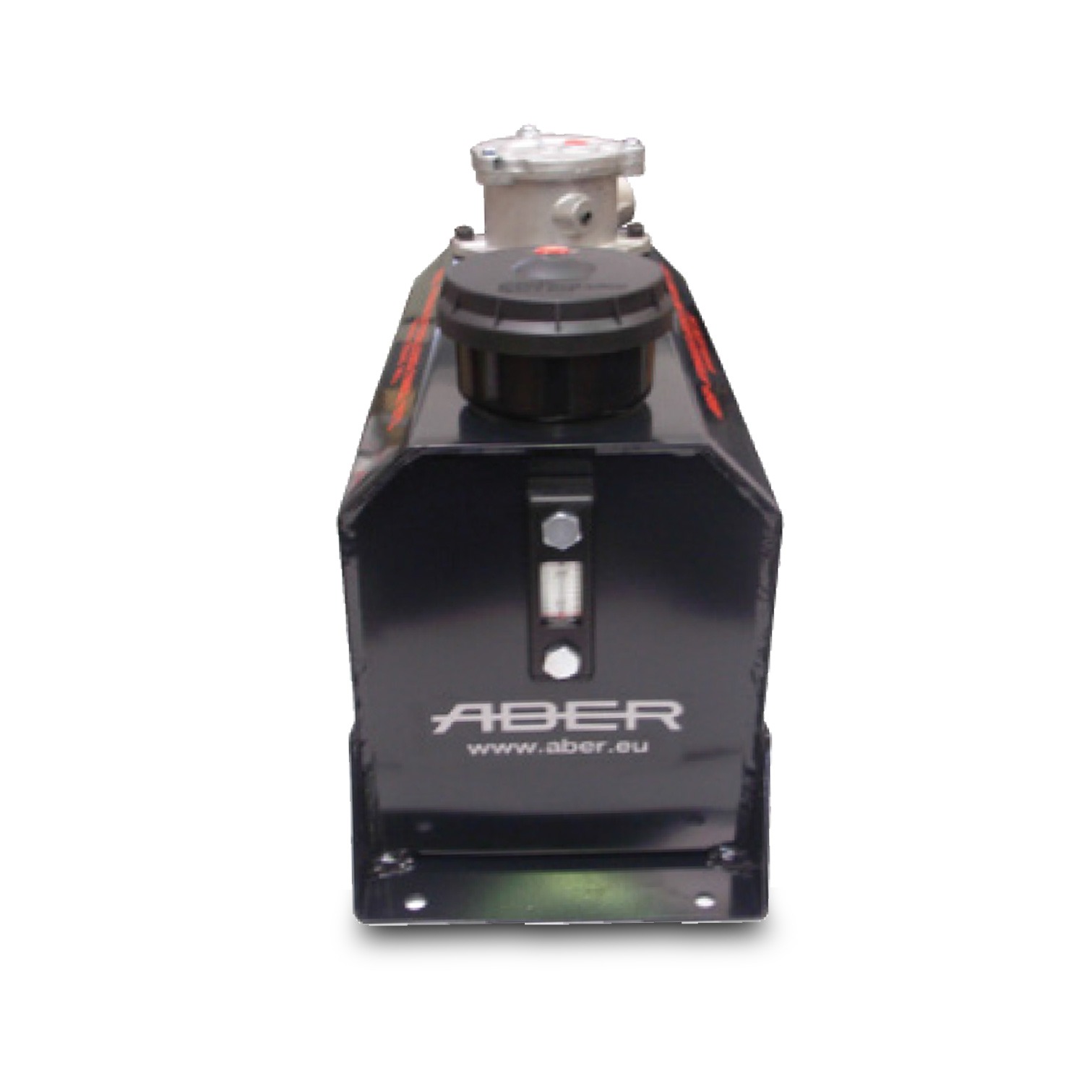

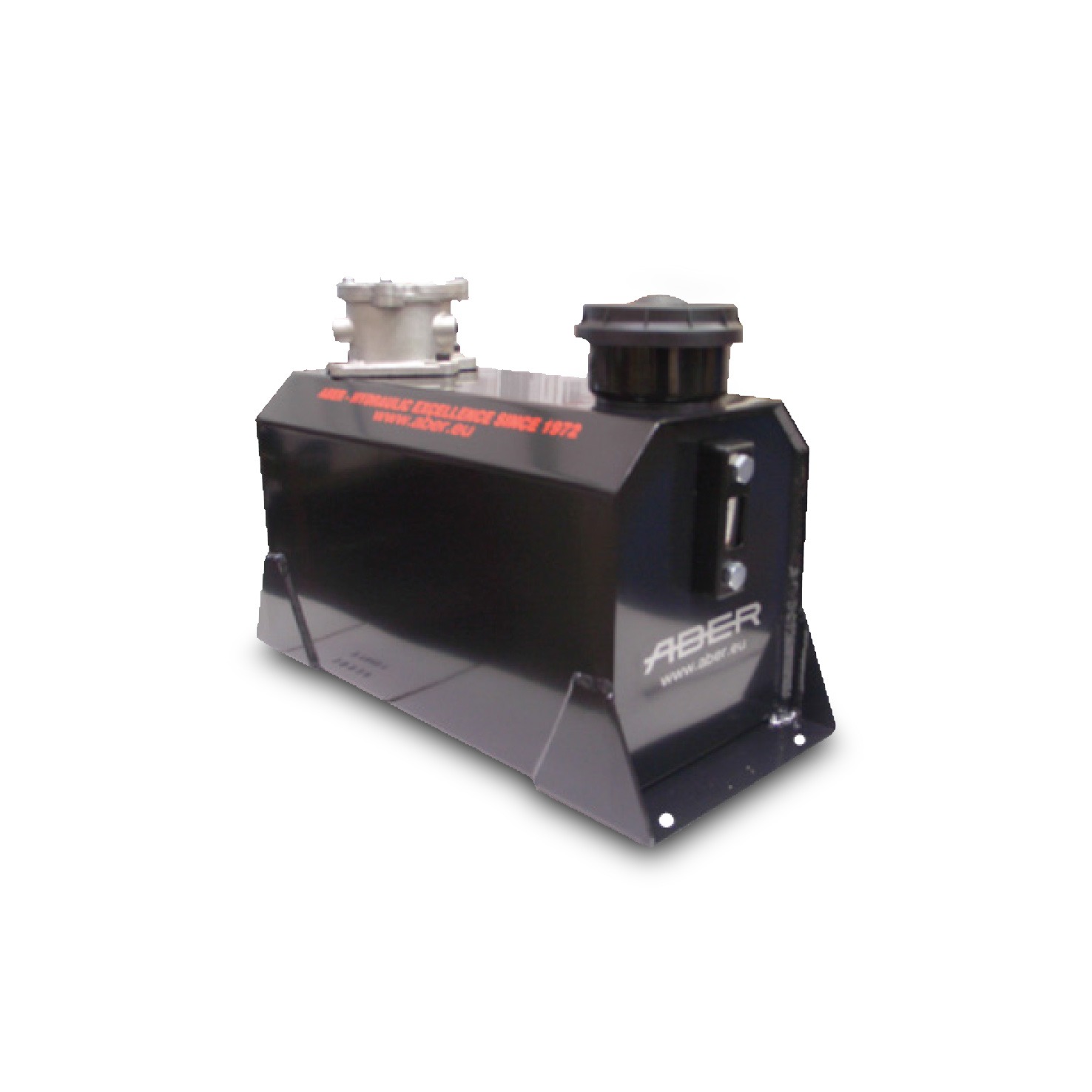

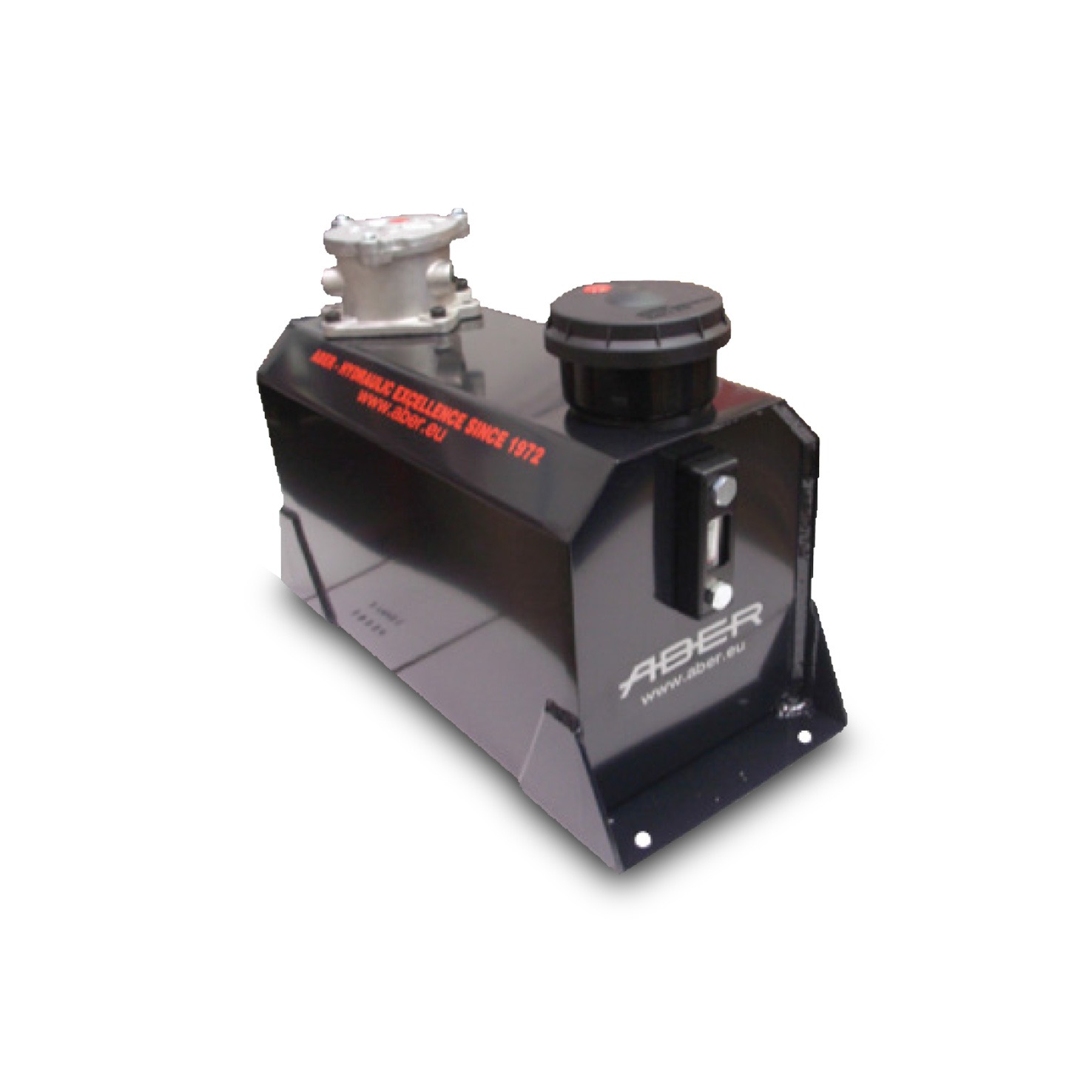

Rear Mounting Oil Tank – TR

Standard Capacity *

Material *

Level Indicator *

Filter and Breather *

Mounting Options *

Optionals

SKU: TR Category: Tags: ,

Description

On request many other configurations and volumes of the Rear Mounting Oil Tank – TR can be produced. For non standard dimensions please contact us.

Capacity (Liters)MaterialA (mm)B (mm)C (mm)Suction Pipe *BSP
20FE - AL - IX2652204501"
40FE - AL - IX4752903301"
60FE - AL - IX4752904901" 1/4
80FE - AL - IX4752906501" 1/2
100FE - AL - IX6452905851" 1/2
ReferenceStandard CapacityMaterialLevel IndicatorFilter and BreatherMounting OptionsOptionals
TR20LFERN0M
40LALLFB1
60LIX1A
80L2
100L3
4

Example: TR 40 FE L  FB 1 M

Tank with 40 liters, Rear Mounting, made in Steel, with Long Optical Oil Level, Filler Cap with Integral Air Filter, Tank Top Return Filter (Single) with manometer

CODES DESCRIPTION

  • FE – Steel
  • AL – Aluminium
  • IX – Stainless Steel
  • R – Round Oil Level Indicator
  • L – Long Optical Oil Level Indicator
  • N – Ready for filler CAP Plug
  • FB – Filler CAP Breather Plug  with integral air filter
  • 0 – Ready for Tank top oil return filter or flange for valve
  • 1 – Tank Top Oil return filter single port
  • 1 A – Tank Top Oil return filter double port
  • 2 – Flange to Pneumatic Distributor and Oil Filter (Distributor not included)
  • 3 – Flange to Electrical Distributor  and Oil Filter (Distributor not included)
  • 4 – Direct Oil Return
  • M – Manometer for Return Filter
