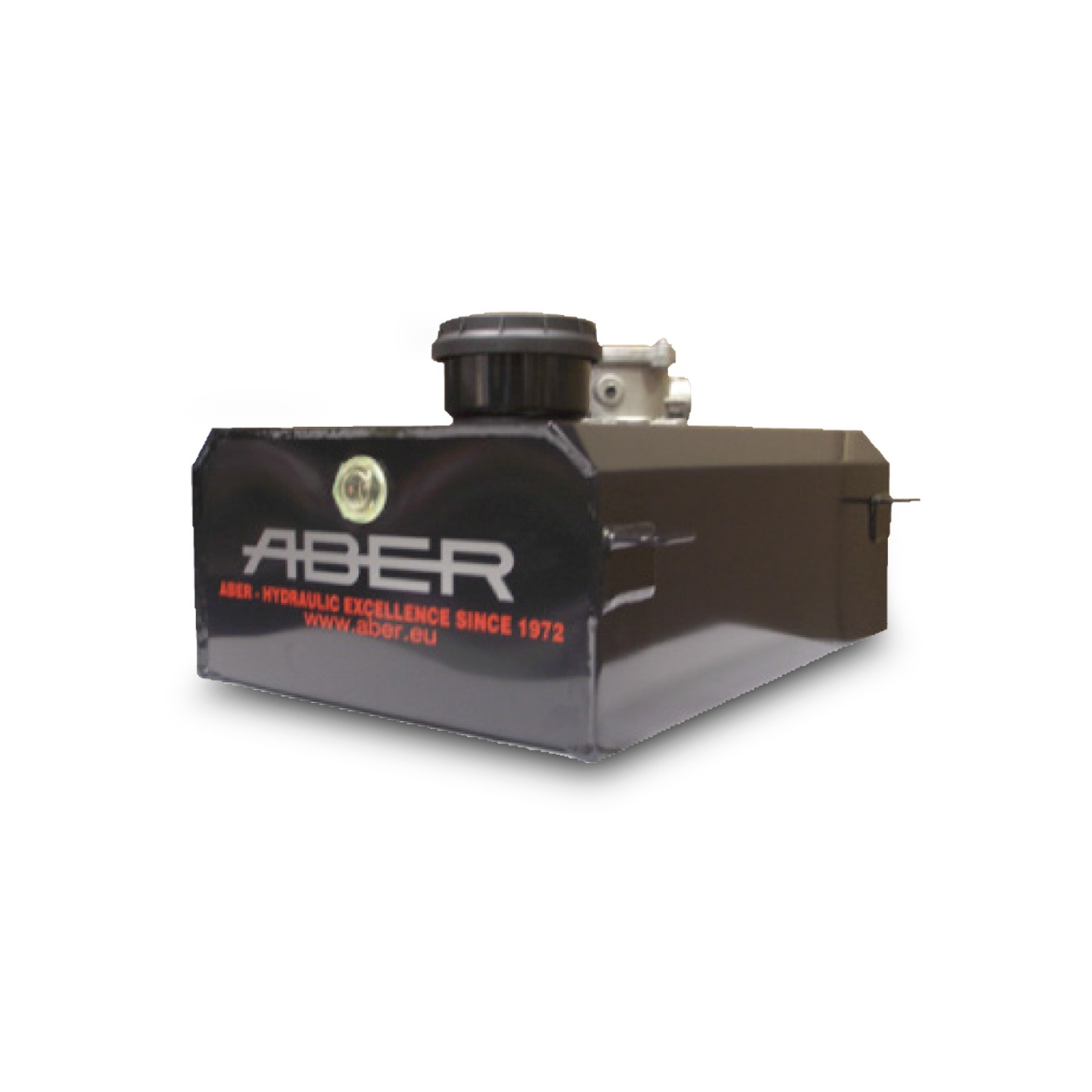

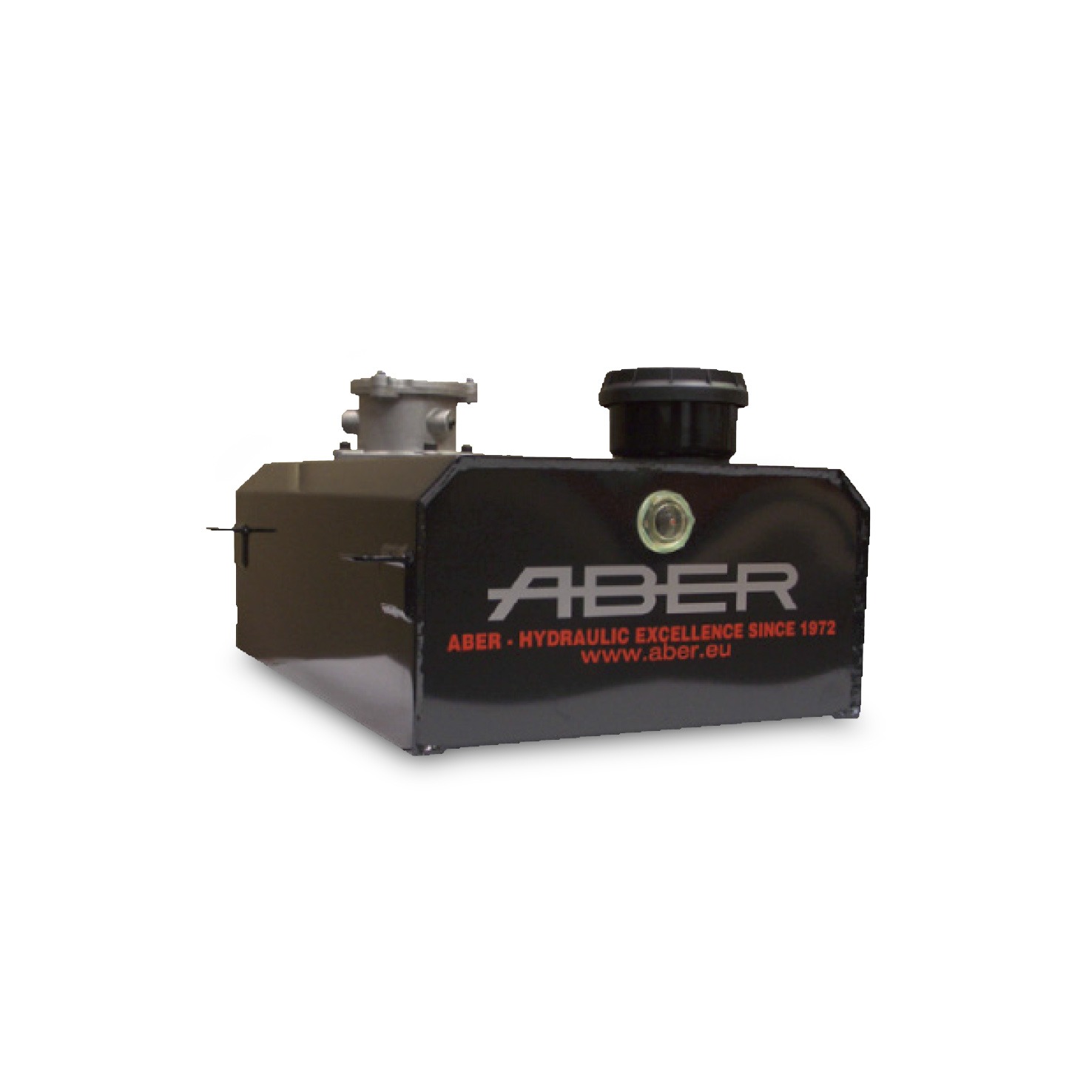

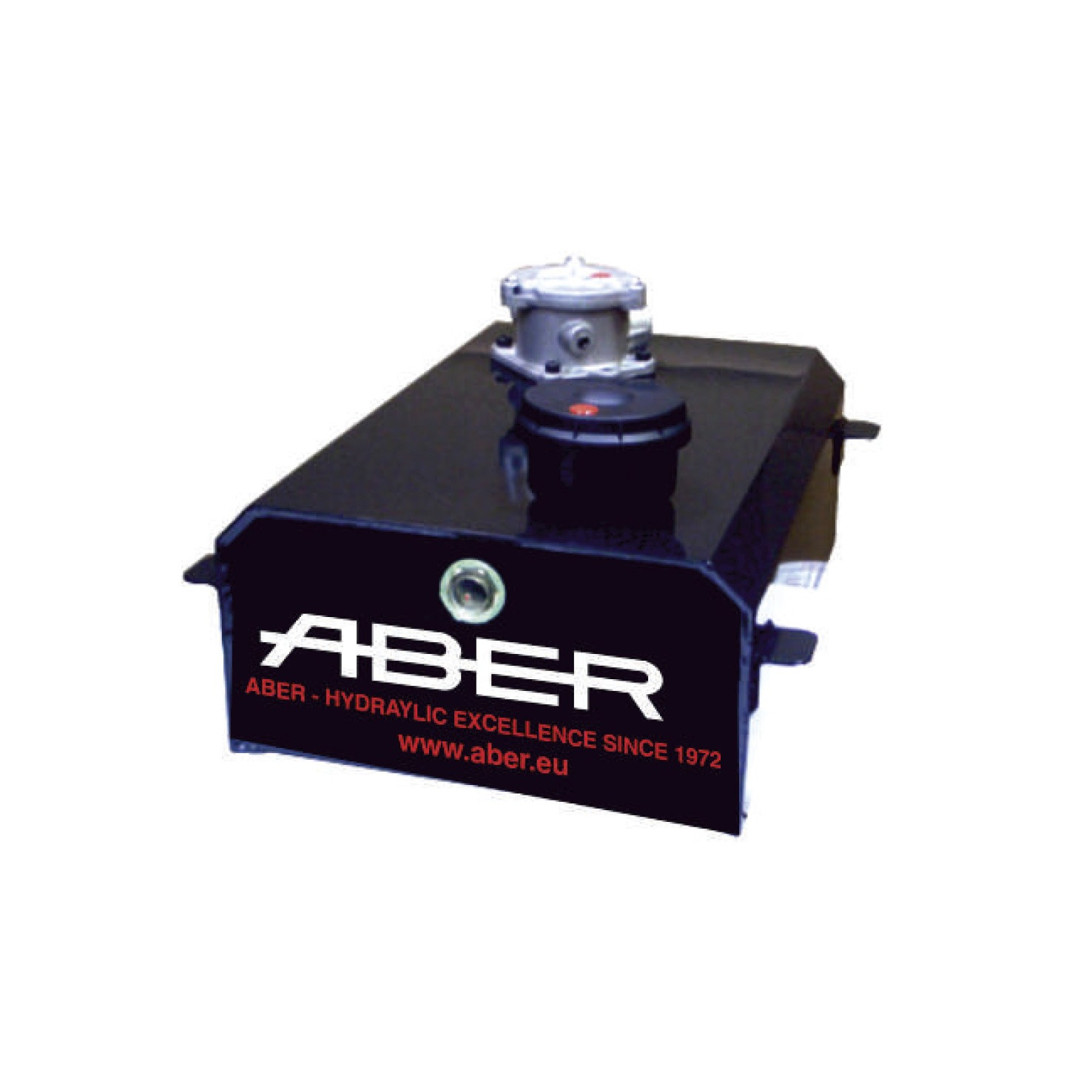

Chassis Mounting Oil tank – TC series

Capacities from 15 to 80 L. On request many other configuration and volumes of the Chassis Mounting Oil tank can be produced. For non standard dimensions please contact us.

Capacity (Liters)MaterialA (mm)B (mm)C (mm)Suction Pipe *BSP
15FE - AL - IX2152802553/4"
20FE - AL - IX1953203703/4"
35FE - AL - IX1955203701"
45FE - AL - IX2905003601" 1/4
60FE - AL - IX2656054051" 1/4
80FE - AL - IX3103808001" 1/4
ReferenceStandard CapacityMaterialLevel IndicatorFilter and BreatherMounting OptionsOptionals
TC15LFERN0M
20LALLFB1
35LIX1A
45L2
60L3
80L4

Example: TC 35 FE R FB 1 M

Tank with 35 liters, Chassis Mounting, made in Steel, with Round Oil Level, Filler Cap Breather Plug with Integral Air Filter, and Tank Top Return Filter (Single) with manometer

CODES DESCRIPTION

  • FE – Steel
  • AL – Aluminium
  • IX – Stainless Steel
  • R – Round Oil Level Indicator
  • L – Long Optical Oil Level Indicator
  • N – Ready for filler CAP Plug
  • FB – Filler CAP Breather Plug  with integral air filter
  • 0 – Ready for Tank top oil return filter or flange for valve
  • 1 – Tank Top Oil return filter single port
  • 1 A – Tank Top Oil return filter double port
  • 2 – Flange to Pneumatic Distributor and Oil Filter (Distributor not included)
  • 3 – Flange to Electrical Distributor  and Oil Filter (Distributor not included)
  • 4 – Direct Oil Return
  • M – Manometer for Return Filter
