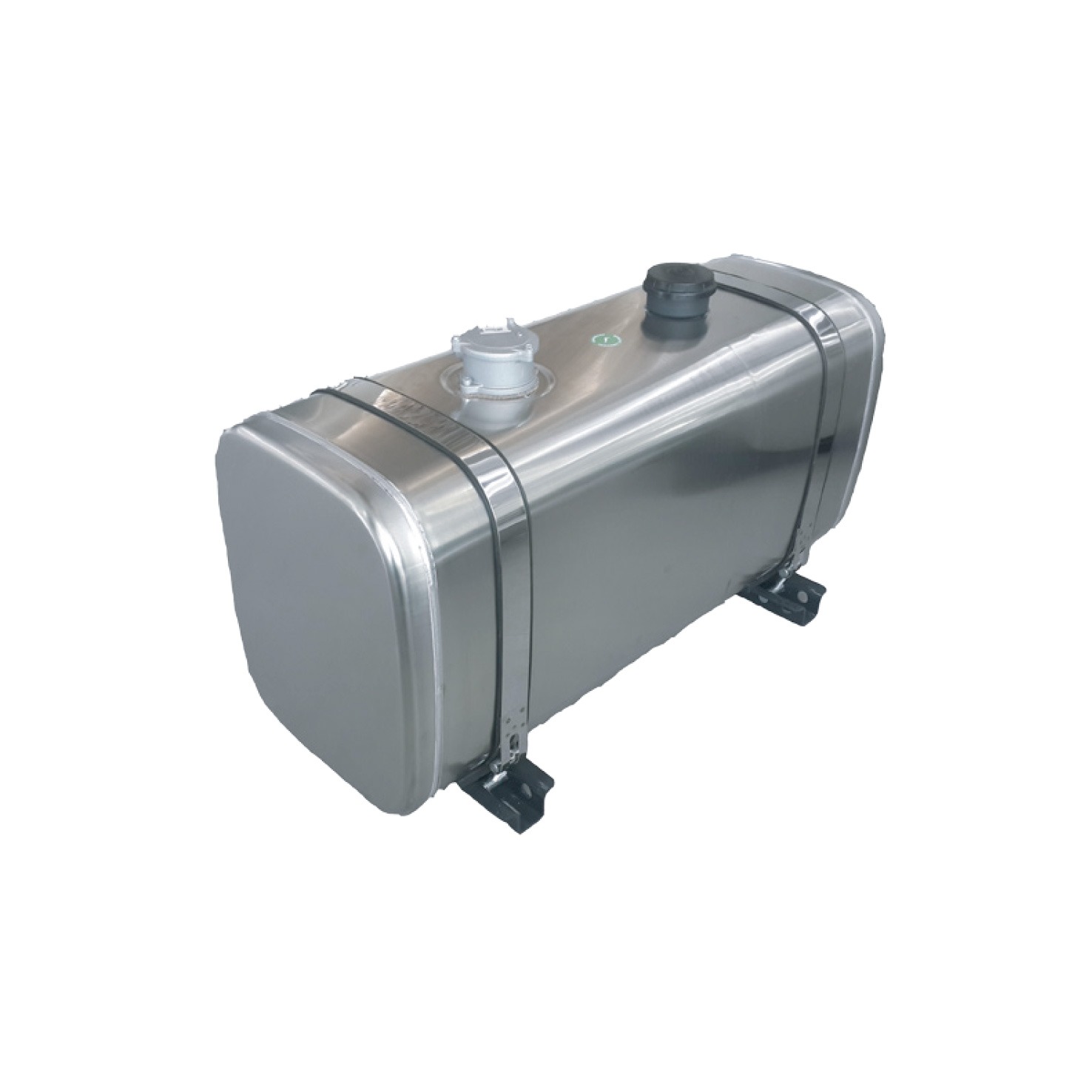

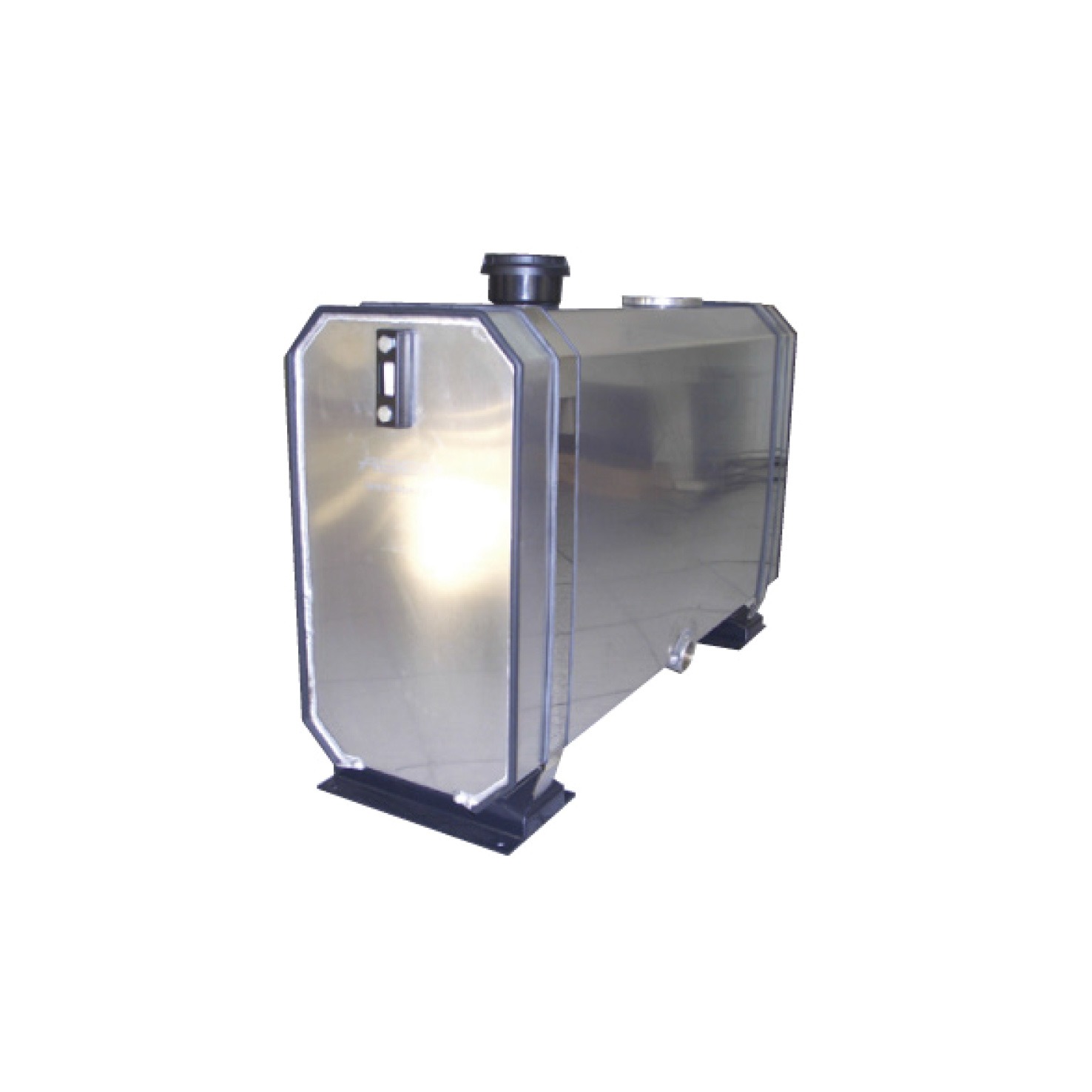

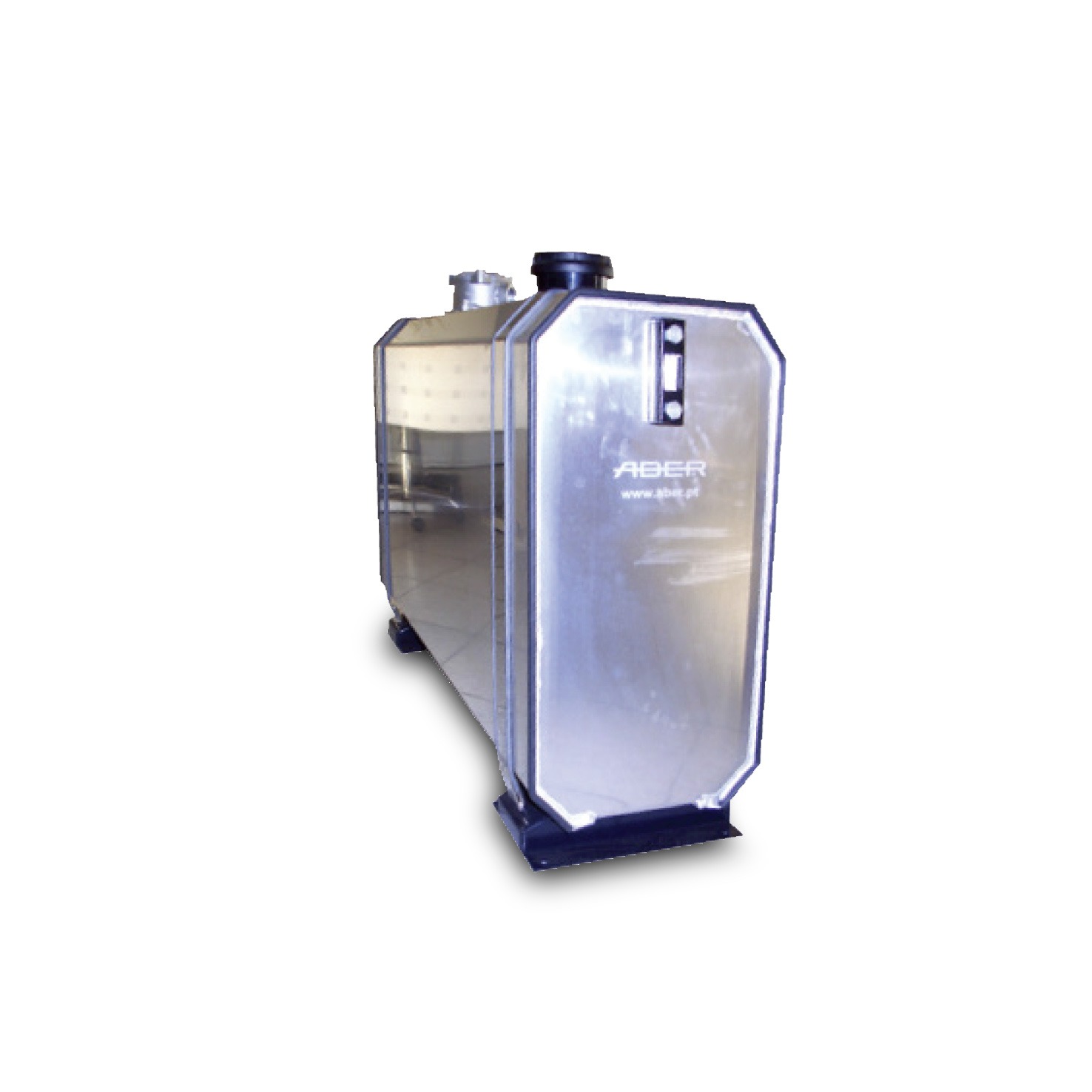

Oil Tank Rear Mounting with belts – TRB

This Oil Tank Rear Mounting with belts has capacities from 100 to 245 liters. Is available in 3 different finishings: Steel, Aluminium or Stainless steel.

Many other options available.On request many other configuration and volumes can be produced. For non standard dimensions please contact us.

Find out more below.

Capacity (Liters)MaterialA (mm)B (mm)C (mm)Suction Pipe *BSP
100FE - AL - IX5803206001" 1/2
120FE - AL - IX5803207201" 1/2
140FE - AL - IX5803208401" 1/2
170FE - AL - IX58032010001" 1/2
200FE - AL - IX58032011701" 1/2
245FE - AL - IX76032010001" 1/2
ReferenceStandard CapacityMaterialLevel IndicatorFilter and BreatherMounting OptionsSupportOptionals
TRB100LFERN0R1M
120LALLFB1R2
140LIX1A
170L2
200L3
245L4

Example: TRB 245 AL L FB 1 R1 M

Tank with 245 liters, Rear Mounting with Brackets, made in Aluminium, with Long Optical Oil Level, Filler Cap with Integral Air Filter, Tank Top Return Filter (Single), and Rear Belt Support with manometer

CODES DESCRIPTION

  • FE – Steel
  • AL – Aluminium
  • IX – Stainless Steel
  • R – Round Oil Level Indicator
  • L – Long Optical Oil Level Indicator
  • N – Ready for filler CAP Plug
  • FB – Filler CAP Breather Plug  with integral air filter
  • 0 – Ready for Tank top oil return filter or flange for valve
  • 1 – Tank Top Oil return filter single port
  • 1 A – Tank Top Oil return filter double port
  • 2 – Flange to Pneumatic Distributor and Oil Filter (Distributor not included)
  • 3 – Flange to Electrical Distributor  and Oil Filter (Distributor not included)
  • 4 – Direct Oil Return
  • M – Manometer for Return Filter
