Tandem Hydraulic Gear Pump – B3D Series | 38 – 125cc/rot

  • Medium Size
  • Fast to Mount
  • Bidirectional
  • Side Inlet/Outlet
  • Assembled up to Three Pumps
Clear

Description

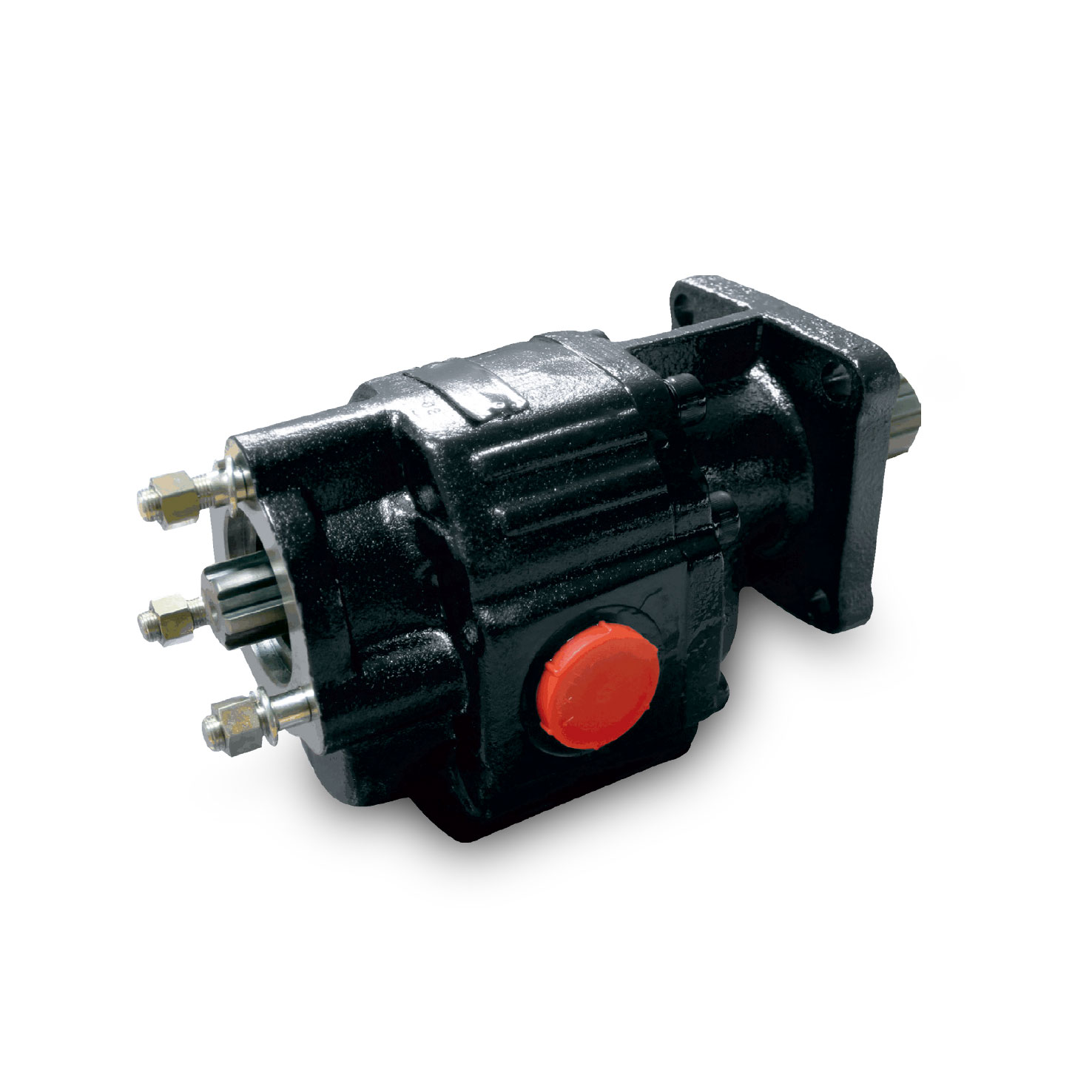

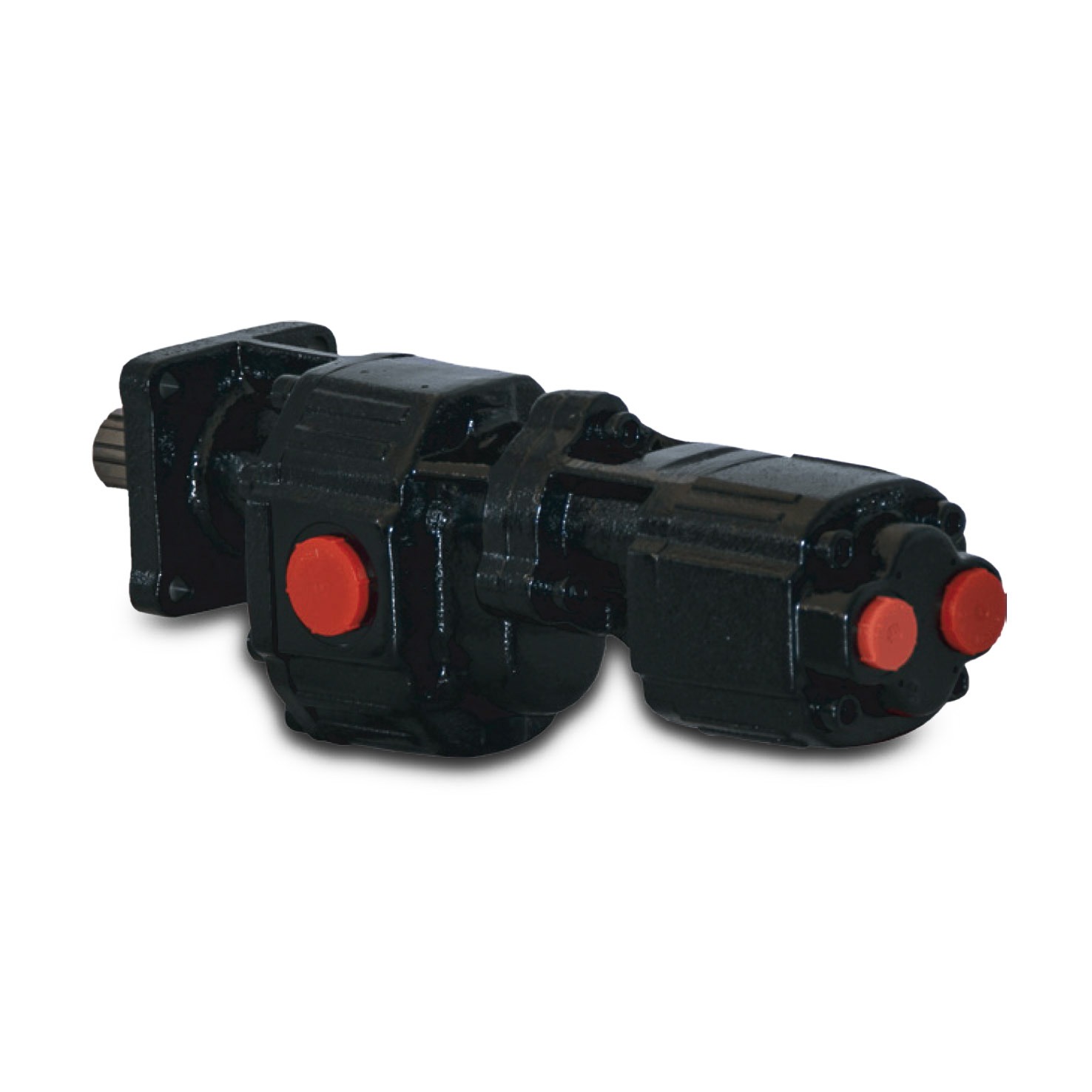

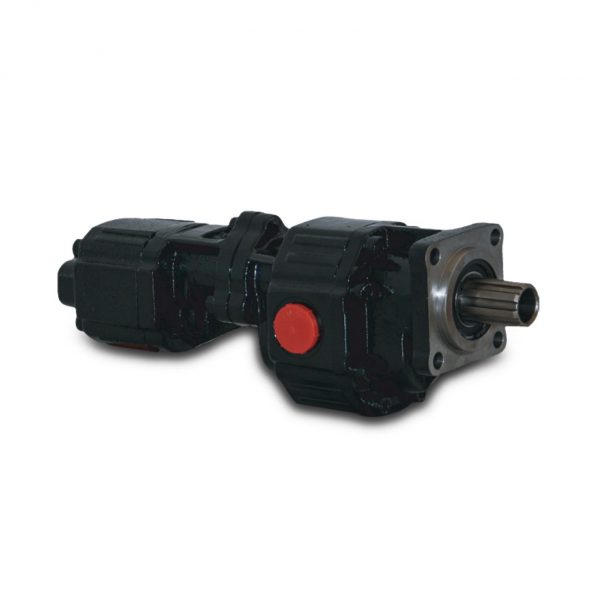

ABER Tandem Hydraulic Gear Pump – B3D Series

This is a Tandem hydraulic gear pump with bidirectional sense of flow and also side outlet, in addition it is prepared for UNI gear pumps mounting.

B3D series goes from 38cc/rot (2.3in3/rot) to 125cc/rot (7.6in3/rot) and most of all it is:

  • Medium size
  • Fast
  • Assembled up to three pumps
  • Bidirectional

In conclusion B3D series Hydraulic Gear Pump is also available with many Flange and Axle options:

  • DIN 5462 or DIN 5463 UNI
  • DIN 9611 agricultural
  • SAE B 4 bolts or SAE B 2 bolts

Note: To know the maximum operating pressure consult the technical sheet.

DISPLACEMENT cc/rot (in3/rot)DIN 5462 ISO 7653 (EN)DIN 5463 UNI (UNI)DIN 9611 AGRICULTURAL (DA)SAE B 4 BOLTS (B4)SAE B 2 BOLTS (B2)
38 (2.3)B34D38B33D38B34RD38DAB3B4D38B3B2D38
52 (3.2)B34D52B33D52B34RD52DAB3B4D52B3B2D52
61 (3.7)B34D61B33D61B34RD61DAB3B4D61B3B2D61
70 (4.3)B34D70B33D70B34RD70DAB3B4D70B3B2D70
82 (5.0)B34D82B33D82B34RD82DAB3B4D82B2B2D82
91 (5.6)B34D90B33D90B34RD90DAB3B4D90B3B2D90
102 (6.2)B34D105B33D105B34RD105DAB3B4D105B3B2D105
116 (7.1)B34D115B33D115B34RD115DAB3B4D115B3B2D115
125 (7.6)B34D125B33D125B34RD125DAB3B4D125B3B2D125

Additional information

Displacement cc/rot (in3/rot)

38 (2.3), 52 (3.2), 61 (3.7), 70 (4.3), 82 (5.0), 91 (5.6), 102 (6.2), 116 (7.1), 125 (7.6)

Flange and Axle Options

DIN 5642 EN (ISO7653), DIN 5463 UNI (UNI), DIN 9611 DA (Agricultural), SAE B B4 (4bolts), SAE B B2 (2bolts)
