Hydraulic Gear Pump – B3 Series | 38 – 125cc/rot

  • Medium Size
  • Fast to Mount
  • Bidirectional
  • Rear and Side Inlet/Outlet
Clear

Description

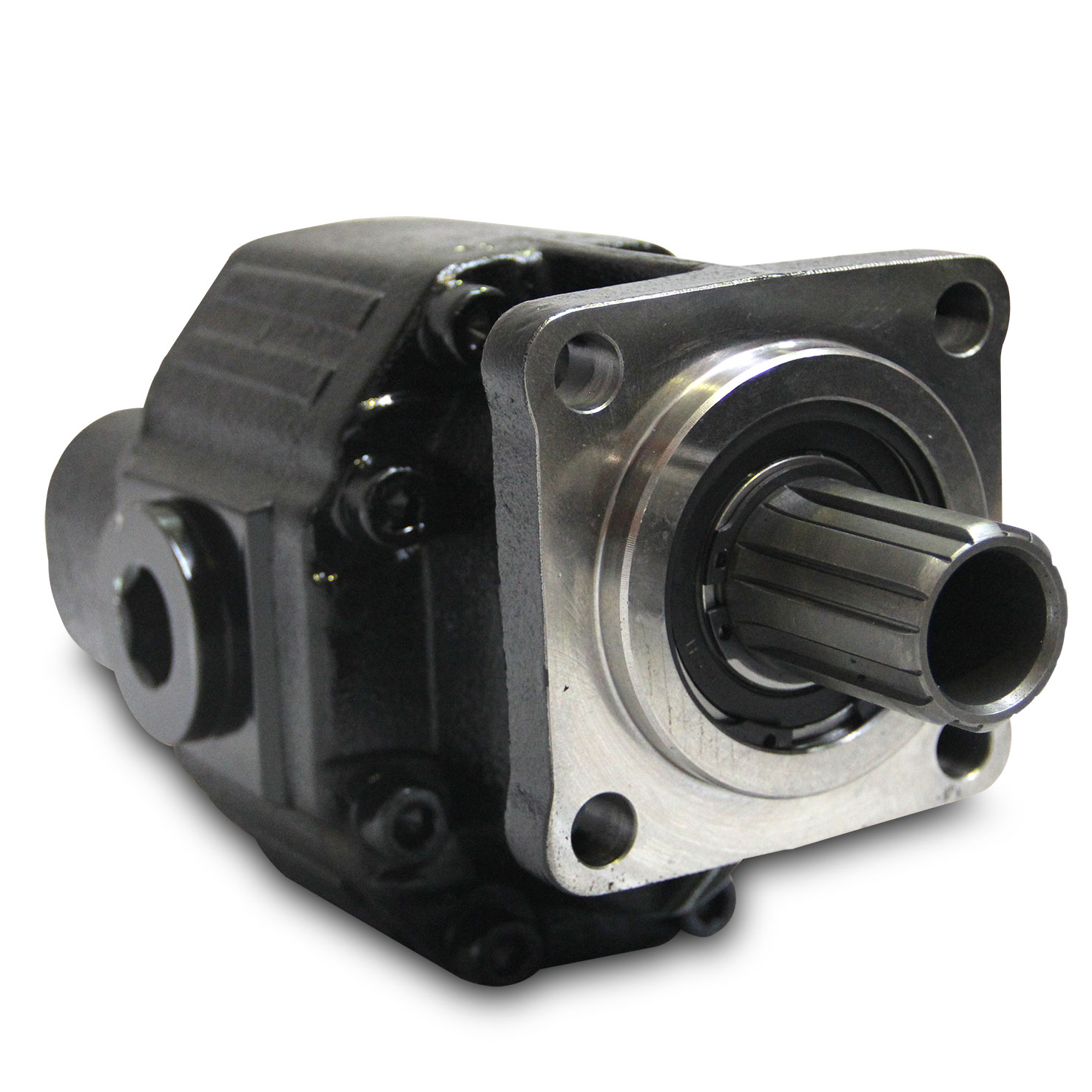

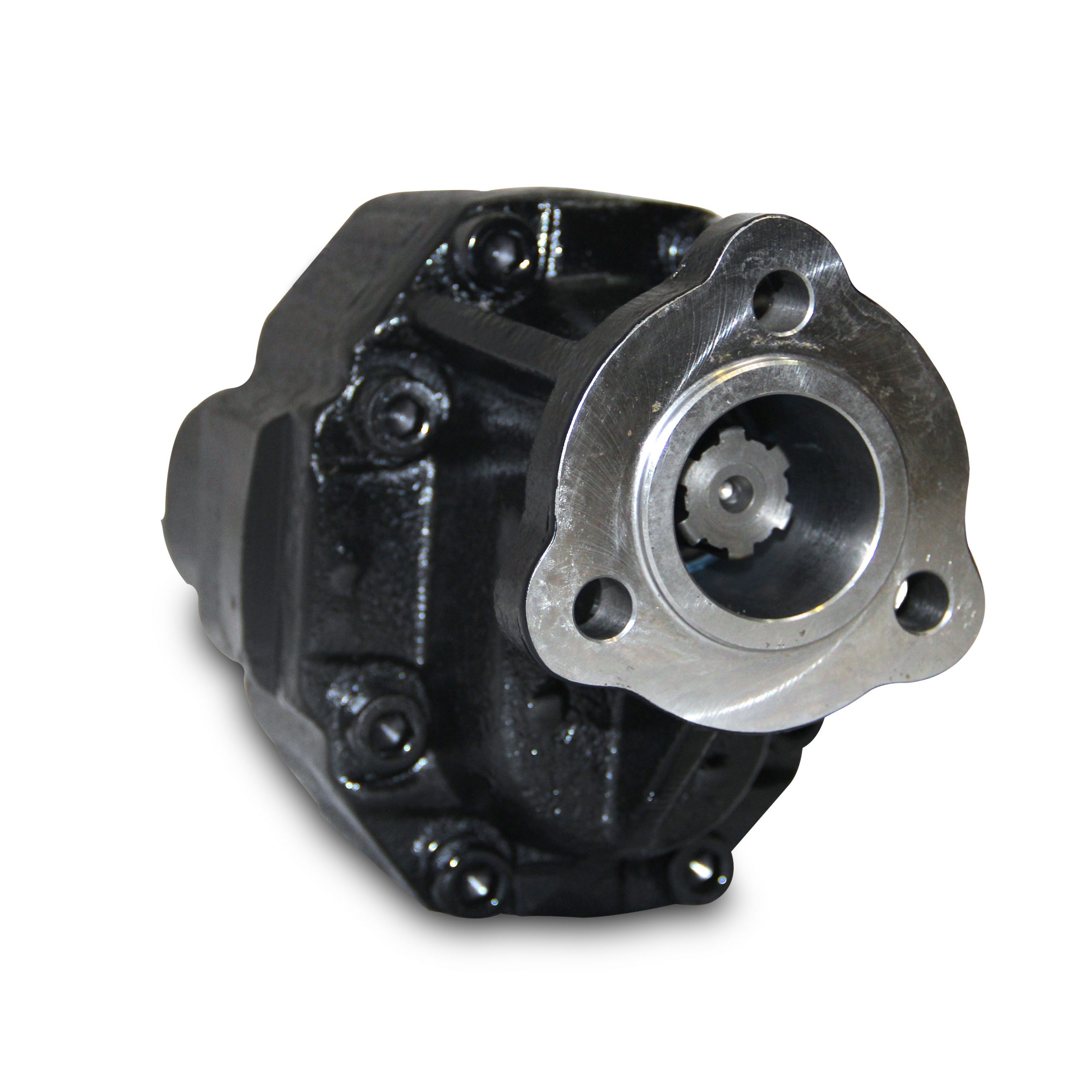

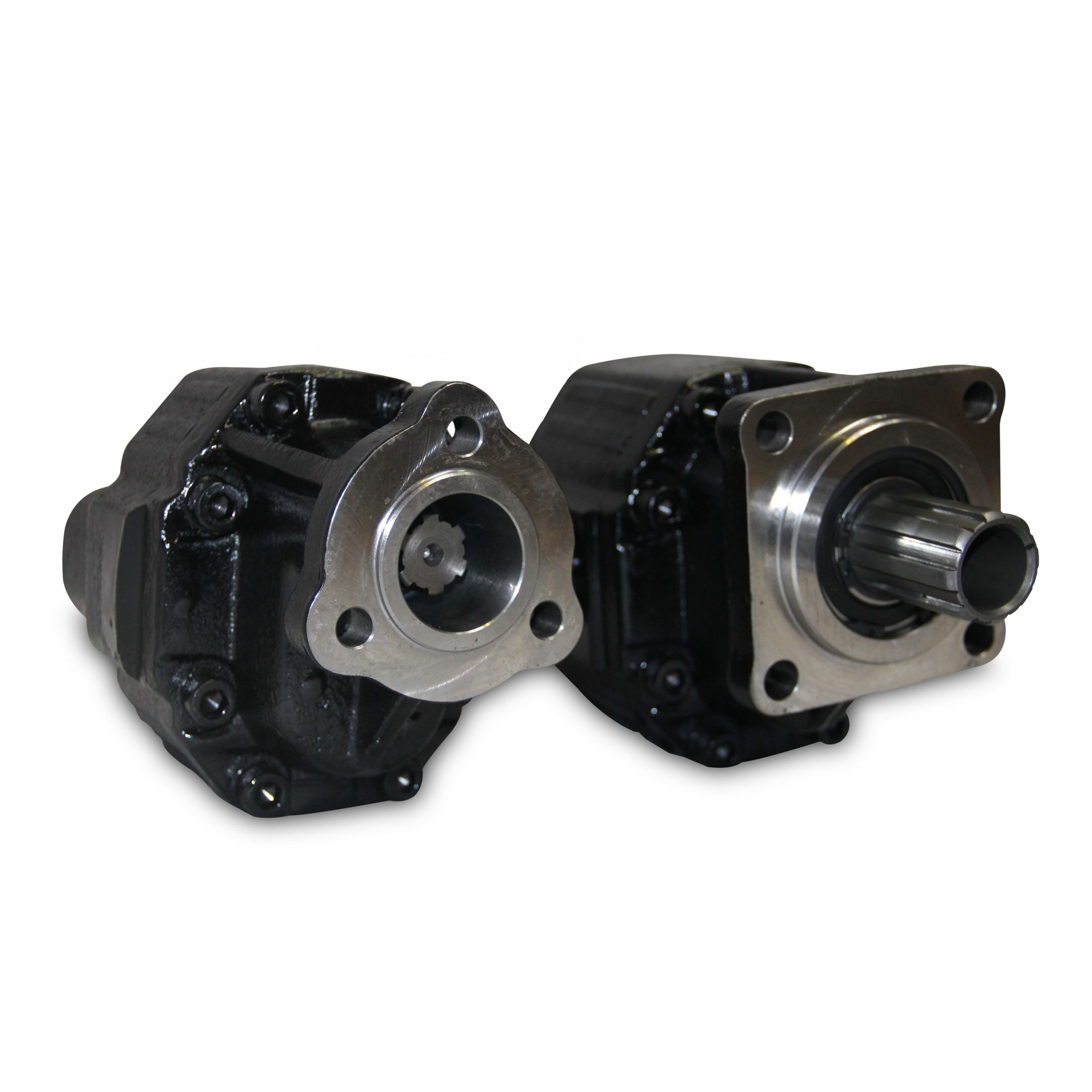

Bidrectional Hydraulic Gear Pump – B3 series

First of all it’s a bidirectional hydraulic gear pump ranging displacements from 38cc to 125cc.

Furthermore, unidirectional version is available on request.
While it is available in a wide of range of displacements, different displacements can also be made.
Because of the rear inlet/outlet or side and rear inlet/outlet options it is applicable in many situations.
Especially relevant is its medium size and fast mounting making this handy.
The B3 series Bidirectional Hydraulic Gear Pump can operate ate a máx. pressure of 300bar (4000 psi).

Flange and Axle Options:

  • DIN
    • 5462 ISO 7653(EN)
    • 5463 UNI
    • 9611 Agricultural
  • SAE B
    • 4 bolts
    • 2 bolts
DISPLACEMENT cc/rot (in3/rot)MAXIMUM OPERATING PRESSURE bar (psi)MAXIMUM CONTINOUS ROTATION rpmDIN 5462 ISO 7653 (EN)DIN 5463 UNI (UNI)DIN 9611 AGRICULTURAL (DA)SAE B 4 BOLTS (B4)SAE B 2 BOLTS (B2)
38 (2.3)300 (4300)2600B34T38B33T38B34T38DAB3B4T38B3B2T38
45 (2.8)280 (4000)2500B34T45B33T45B34T45DAB3B4T45B3B2T45
52 (3.2)260 (3800)2200B34T52B33T52B34T52DAB3B4T52B3B2T52
61 (3.7)240 (3500)2000B34T61B33T61B34T61DAB3B4T61B3B2T61
70 (4.3)220 (3200)1900B34T70B33T70B34T70DAB3B4T70B3B2T70
82 (5.0)210 (3000)1800B34T82B33T82B34T82DAB3B4T82B2B2T82
91 (5.6)190 (2700)1800B34T90B33T90B34T90DAB3B4T90B3B2T90
102 (6.2)190 (2700)1600B34T105B33T105B34T105DAB3B4T105B3B2T105
116 (7.1)180 (2600)1600B34T115B33T115B34T115DAB3B4T115B3B2T115
125 (7.6)170 (2500)1500B34T125B33T125B34T125DAB3B4T125B3B2T125
DISPLACEMENT cc/rot (in3/rot)MAXIMUM OPERATING PRESSURE bar (psi)MAXIMUM CONTINOUS ROTATION rpmDIN 5462 ISO 7653 (EN)DIN 5463 UNI (UNI)DIN 9611 AGRICULTURAL (DA)SAE B 4 BOLTS (B4)SAE B 2 BOLTS (B2)
38 (2.3)300 (4300)2600B34GT38B33GT38B34GT38DAB3B4GT38B3B2GT38
45 (2.8)280 (4000)2500B34GT45B33GT45B34GT45DAB3B4GT45B3B2GT45
52 (3.2)260 (3800)2200B34GT52B33GT52B34GT52DAB3B4GT52B3B2GT52
61 (3.7)240 (3500)2000B34GT61B33GT61B34GT61DAB3B4GT61B3B2GT61
70 (4.3)220 (3200)1900B34GT70B33GT70B34GT70DAB3B4GT70B3B2GT70
82 (5.0)210 (3000)1800B34GT82B33GT82B34GT82DAB3B4GT82B3B2GT82
91 (5.6)190 (2700)1800B34GT90B33GT90B34GT90DAB3B4GT90B3B2GT90
102 (6.2)190 (2700)1600B34GT105B33GT105B34GT105DAB3B4GT105B3B2GT105
116 (7.1)180 (2600)1600B34GT115B33GT115B34GT115DAB3B4GT115B3B2GT115
125 (7.6)170 (2500)1500B34GT125B33GT125B34GT125DAB3B4GT125B3B2GT125

Additional information

Inlet/Outlet

Rear, Rear and Side

Maximum Operating Pressure bar (psi)

300bar (4300psi), 280bar (4000psi), 260bar (3800psi), 240bar (3500psi), 220bar (3200psi), 210bar (3000psi), 190bar (2700psi), 180bar (2600psi), 170bar (2500psi)

Displacement cc/rot (in3/rot)

38 (2.3), 45 (2.8), 52 (3.2), 61 (3.7), 70 (4.3), 82 (5.0), 91 (5.6), 102 (6.2), 116 (7.1), 125 (7.6)

Flange and Axle Options

DIN 5642 EN (ISO7653), DIN 5463 UNI (UNI), DIN 9611 DA (Agricultural), SAE B B4 (4bolts), SAE B B2 (2bolts)
