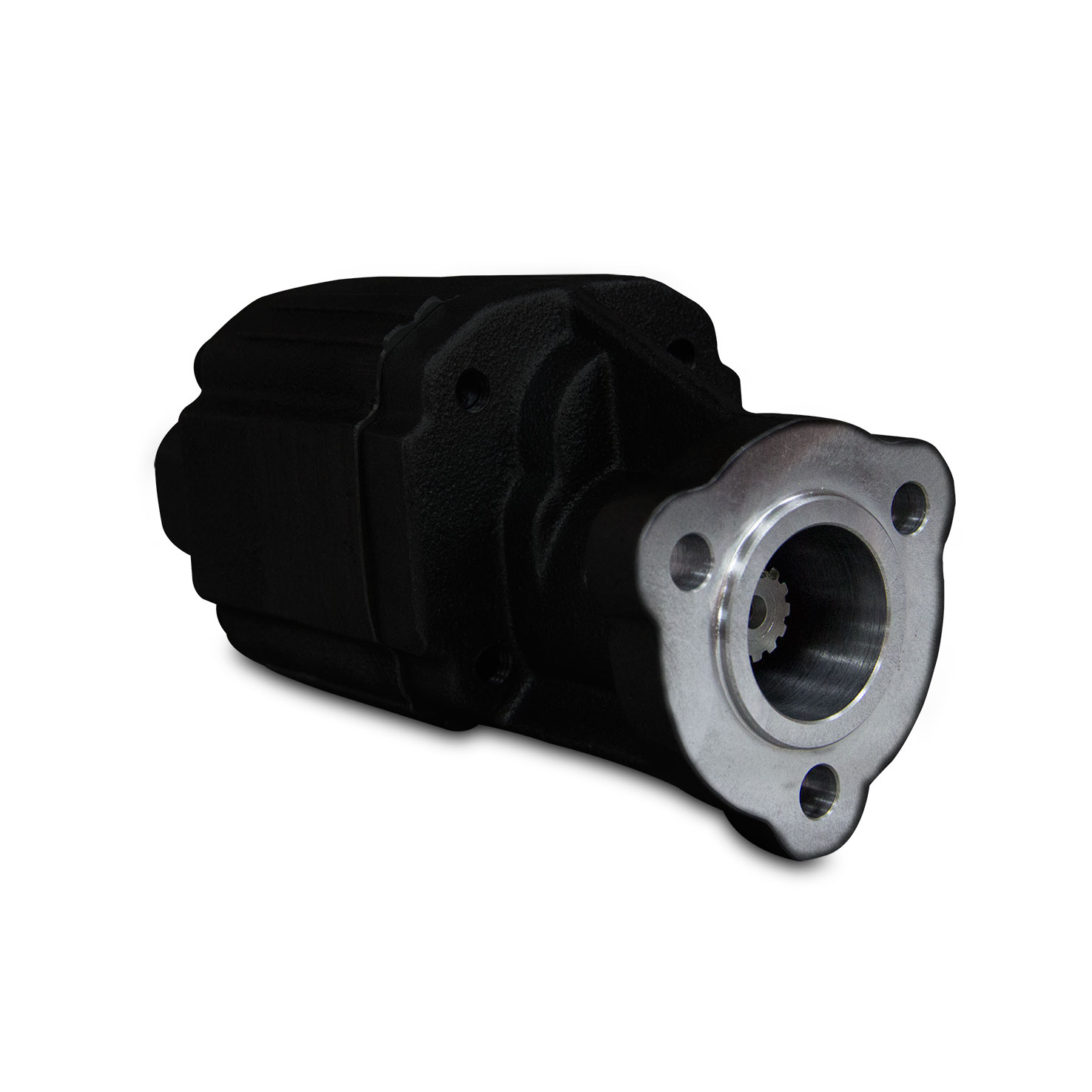

B2 series – Bidirectional Hydraulic Gear Pump | 12 – 39cc/rev
This is a Bidirectional Hydraulic External Gear Pump for light duty applications.
You can also order an unidirectional version of the gear pump.
Get the best for the least weight and size, with displacements from 12 to 39cc/rot (0.7in3/rot to 2.4in3/rot).
As per request different displacements can also be done.
In addition, this gear pump can operate at a maximum pressure of 280bar (4000 psi) and a maximum continuous rotation of 2500 rpm.
Consequently, B2 series external gear pumps is:
- Small
- Fast to Mount
- Bidirectional

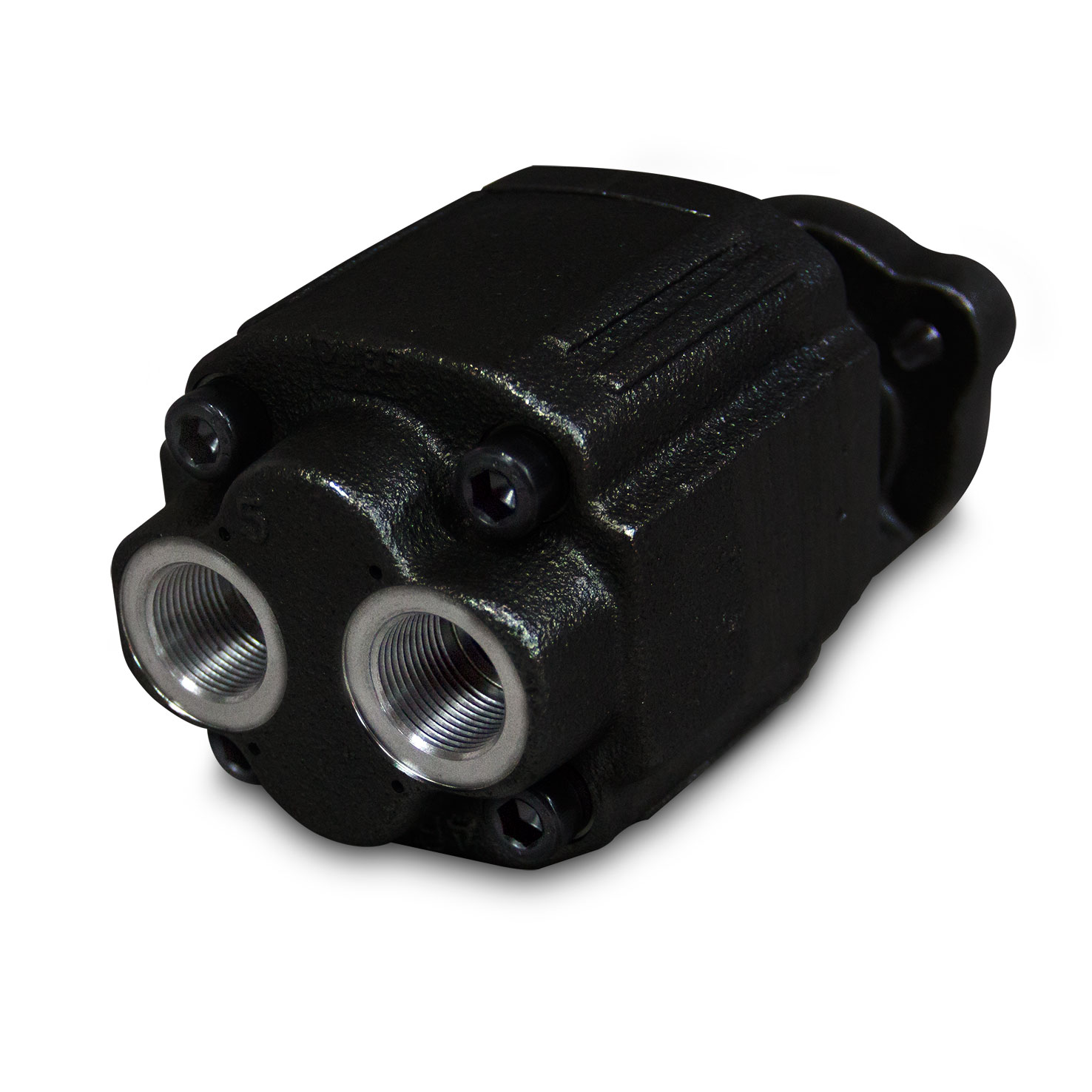

- Rear Inlet/Outlet
and also have a variety of Flange and Axle options:

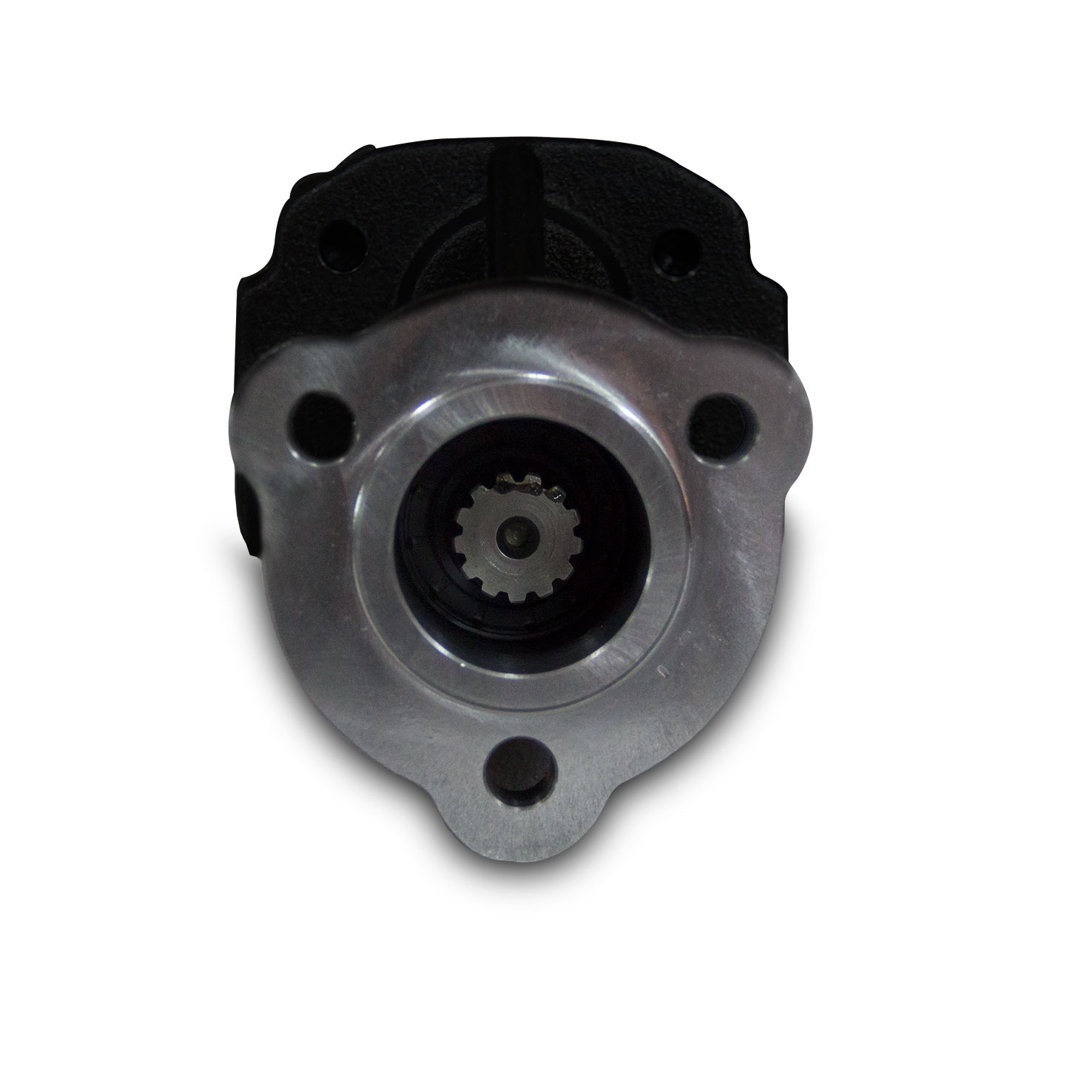

- DIN 5462 or DIN 5463 UNI
- SAE B 4 bolts or 2 bolts
| DISPLACEMENT cc/rot (in3/rot) | MAXIMUM OPERATING PRESSURE bar (psi) | MAXIMUM CONTINOUS ROTATION bar (psi) | DIN 5462 ISO 7653 (EN) | DIN 5463 UNI (UNI) | SAE B 4 BOLTS (B4) | SAE B 2 BOLTS (B2) |
|---|---|---|---|---|---|---|
| 12 (0.7) | 280 (4000) | 2500 | B24T12 | B23T12 | B2B4T12 | B2B2T12 |
| 16 (1.0) | 280 (4000) | 2000 | B24T16 | B23T16 | B2B4T16 | B2B2T16 |
| 20 (1.2) | 260 (3800) | 2000 | B24T20 | B23T20 | B2B4T20 | B2B2T20 |
| 26 (1.6) | 240 (3500) | 2000 | B24T25 | B23T25 | B2B4T25 | B2B2T25 |
| 32 (2.0) | 220 (3200) | 1800 | B24T32 | B23T32 | B2B4T32 | B2B2T32 |
| 39 (2.4) | 170 (2500) | 1800 | B24T40 | B23T40 | B2B4T40 | B2B2T40 |
