Double Straight Piston Pumps – BHD SERIES | 20+20 – 83+42cc/rev

//Double Straight Piston Pumps – BHD SERIES | 20+20 – 83+42cc/rev

Double Straight Piston Pumps – BHD SERIES | 20+20 – 83+42cc/rev

  • Two Independent Oil Outlets
  • Two Independent Pressure Lines
  • Robustness
  • Bidirectional
Clear

Description

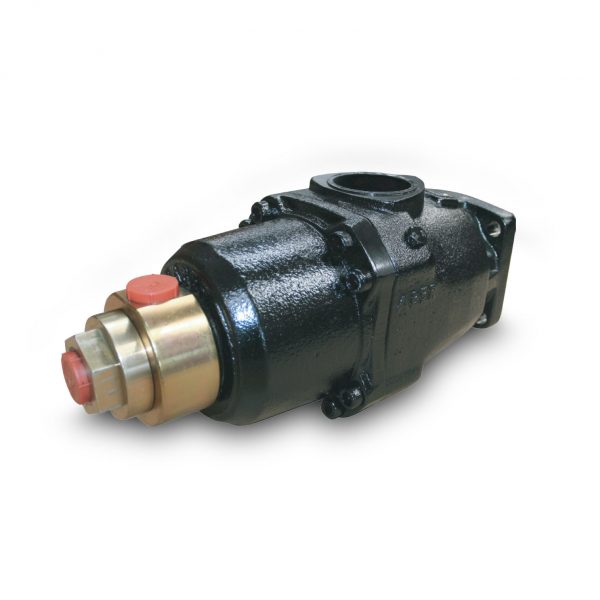

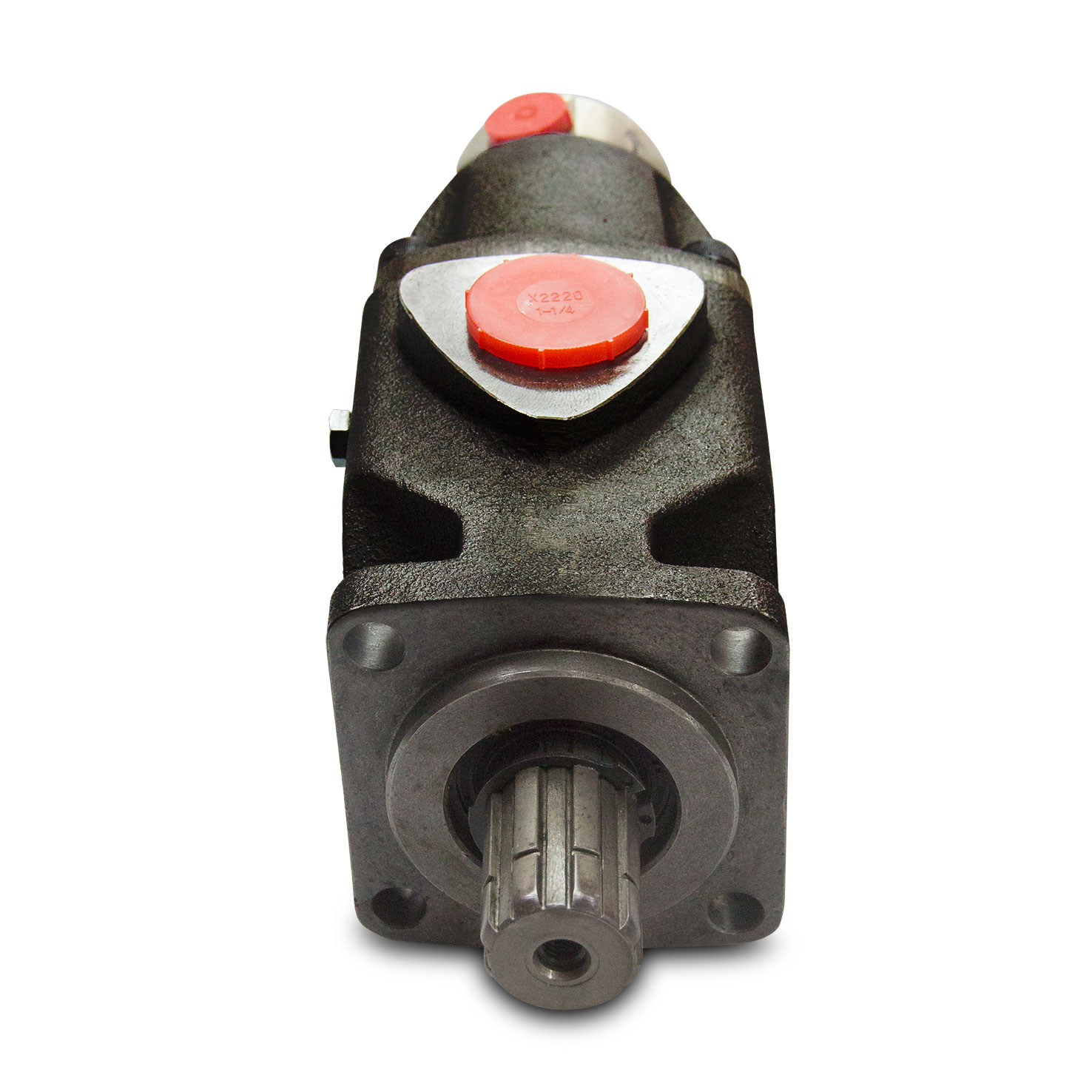

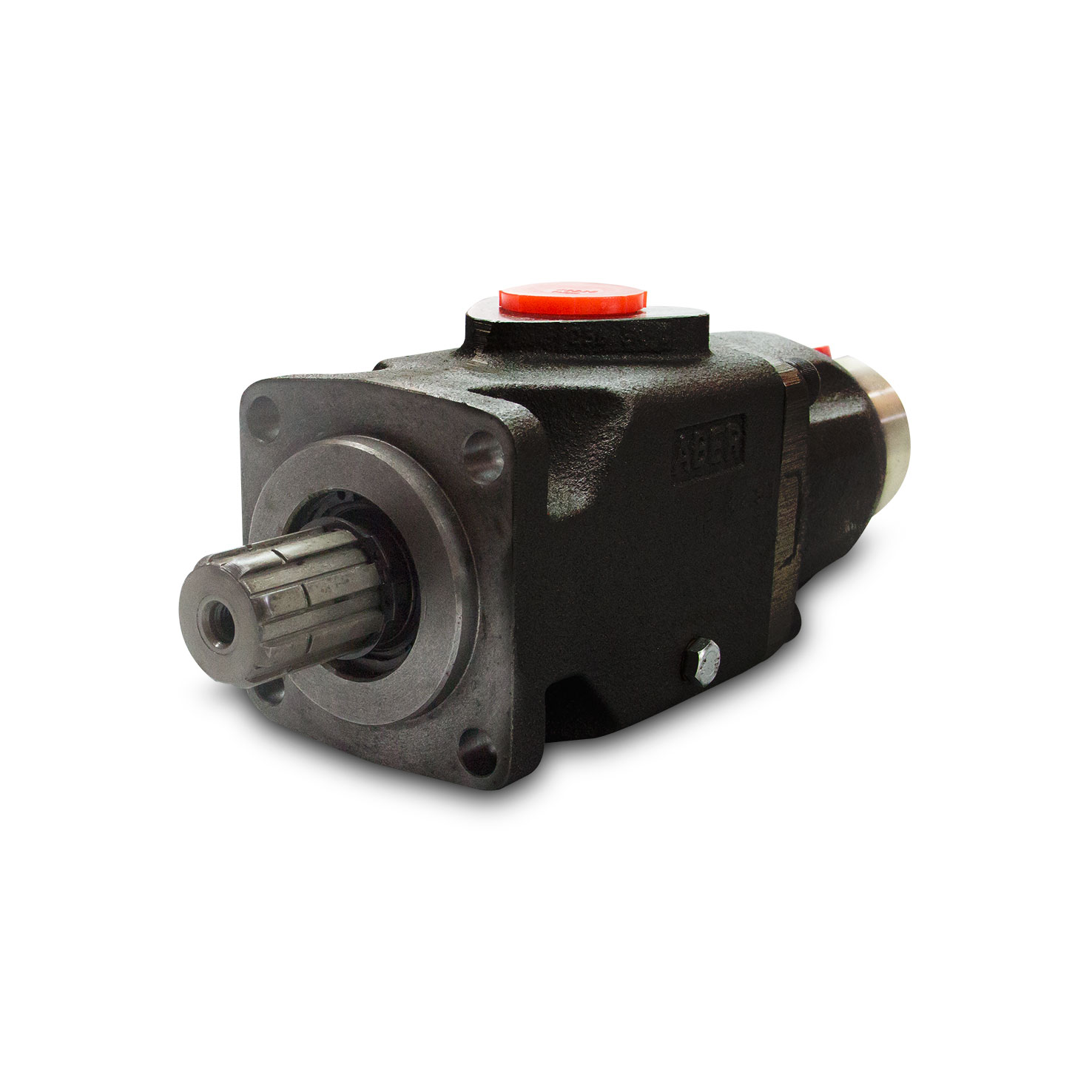

BHD series Double Straight Piston Pumps

First of all the BHD series Double Straight Piston Pumps has two outlets each one work on independent pressure and also on independent circuits.

This is most noteworthy when used to serve two independent oil circuits.

Main features for the BHD series – Double Straight Piston Pumps

• Two independent oil outlets and also two independent pressure lines
• Robustness
• Bidirectional

FLANGE and AXLE OPTIONS:

DIN:

  • 5462
  • 5463
  • 9611 agricultural or interior

SAE

  • 4 bolts
  • 2 bolts

As a result the BHD series pumps are just the perfect solution for your work needs.

DISPLACEMENT cc/rot (in3/rot)DIN 5462 ISO 7653 (EN)DIN 5463 UNI (UNI)DIN 9611 AGRICULTURAL (DA)DIN 9611 INTERIOR (DI)SAE 4 BOLTS (B4/C4)SAE 2 BOLTS (B2/C2)
45 + 45 (2.7 + 2.7)BHD45+45ENBHD45+45UNIBHD45+45DABHD45+45DIBHD45+45C4BHD45+45C2
65 + 22 (4.0 + 1.3)BHD65+22ENBHD65+22UNIBHD65+22DABHD65+22DIBHD65+22C4BHD65+22C2
DISPLACEMENT cc/rot (in3/rot)DIN 5462 ISO 7653 (EN)DIN 5463 UNI (UNI)DIN 9611 AGRICULTURAL (DA)DIN 9611 INTERIOR (DI)SAE 4 BOLTS (B4/C4)SAE 2 BOLTS (B2/C2)
20 + 20 (1.2 + 1.2)BHD20+20ENBHD20+20UNIBHD20+20DA-BHD20+20B4BHD20+20B2
25 + 25 (1.5 + 1.5)BHD25+25ENBHD25+25UNIBHD25+25DA-BHD25+25B4BHD25+25B2
30 + 30 (1.8 + 1.8)BHD30+30ENBHD30+30UNIBHD30+30DA-BHD30+30B4BHD30+30B2
40 + 40 (2.4 + 2.4)BHD40+40ENBHD40+40UNIBHD40+40DABHD40+40DIBHD40+40B4BHD40+40B2
60 + 30 (3.7 + 1.8)BHD60+30ENBHD60+30UNIBHD60+30DABHD60+30DIBHD60+30B4BHD60+30B2
80 + 21 (4.9 + 1.3)BHD80+21ENBHD80+21UNIBHD80+21DABHD80+21DIBHD80+21C4BHD80+21C2
53 + 53 (3.2 + 3.2)BHD53+53ENBHD53+53UNIBHD53+53DABHD53+53DIBHD53+53C4BHD53+53C2
80 + 27 (4.9 + 1.6)BHD80+27ENBHD80+27UNIBHD80+27DABHD80+27DIBHD80+27C4BHD80+27C2
DISPLACEMENT cc/rot (in3/rot)DIN 5462 ISO 7653 (EN)DIN 5463 UNI (UNI)DIN 9611 AGRICULTURAL (DA)DIN 9611 INTERIOR (DI)SAE 4 BOLTS (B4/C4)SAE 2 BOLTS (B2/C2)
50 + 50 (3.1 + 3.1)BHD50+50ENBHD50+50UNIBHD50+50DABHD50+50DIBHD50+50B4BHD50+50B2
72 + 38 (4.4 + 2.3)BHD72+38ENBHD72+38UNIBHD72+38DABHD72+38DIBHD72+38B4BHD72+38B2
83 + 42 (5.1 + 2.6)BHD83+42ENBHD83+42UNIBHD83+42DABHD83+42DIBHD83+42B4BHD83+42B2

Additional information

For applications up to

400bar (5800psi), 300bar (4300psi), 250bar (3600psi)

Displacement cc/rot (in3/rot)

45 + 45 (2.7+2.7), 65 + 22 (4.0+1.3), 20 + 20 (1.2+1.2), 25 + 25 (1.5+1.5), 30 + 30 (1.8+1.8), 40 + 40 (2.4+2.4), 60 + 30 (3.7+1.8), 80 + 21 (4.9+1.3), 53 + 53 (3.2+3.2), 80 + 27 (4.9+1.6), 50 + 50 (3.1+3.1), 72 + 38 (4.4+2.3), 83 + 42 (5.1 + 2.6)

Flange and Axle Options

DIN 5642 EN (ISO7653), DIN 5463 UNI (UNI), DIN 9611 DA ( Agricultural), DIN 9611 DI (Interior), SAE B4/C4 (4bolts), SAE B2/C2 (2bolts)
