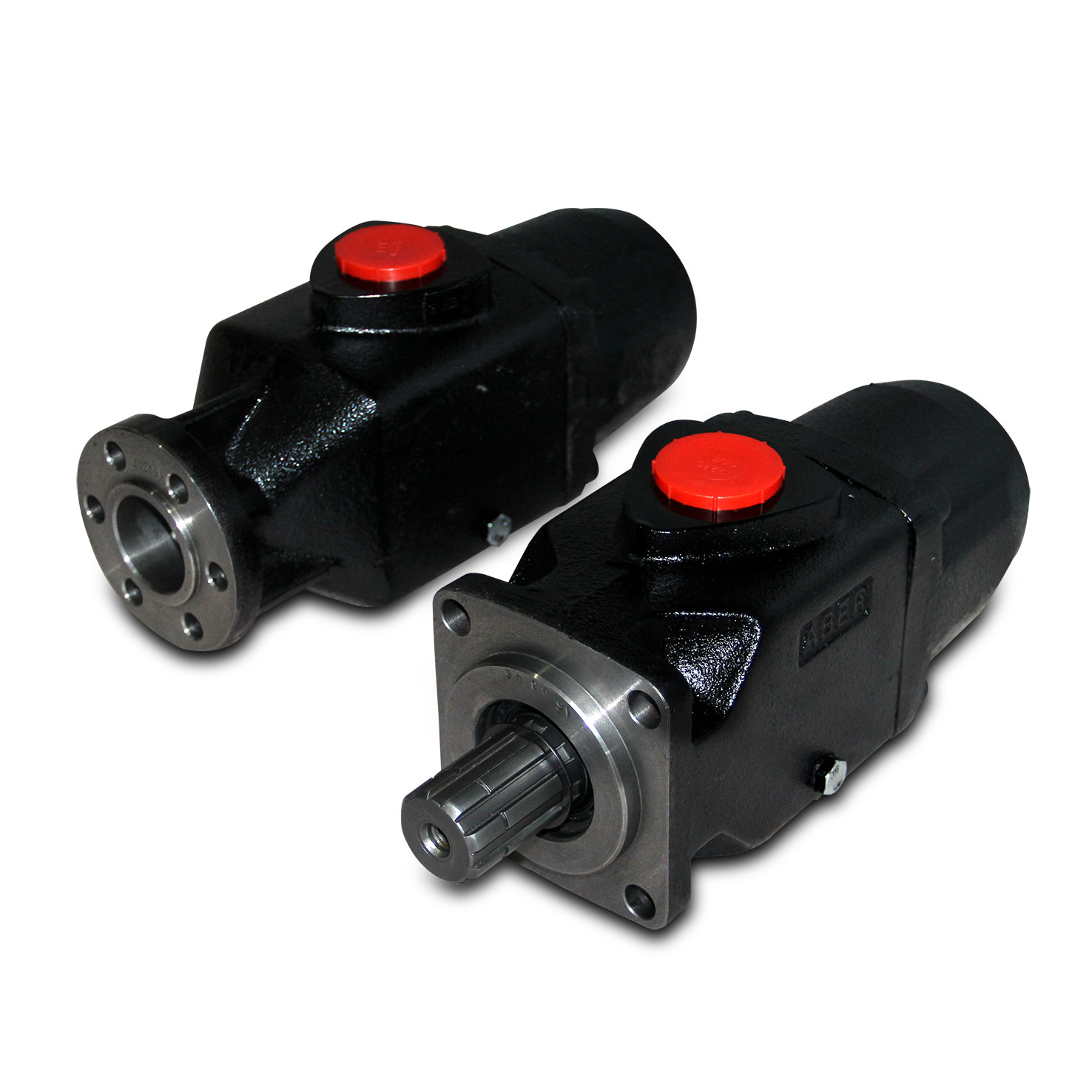

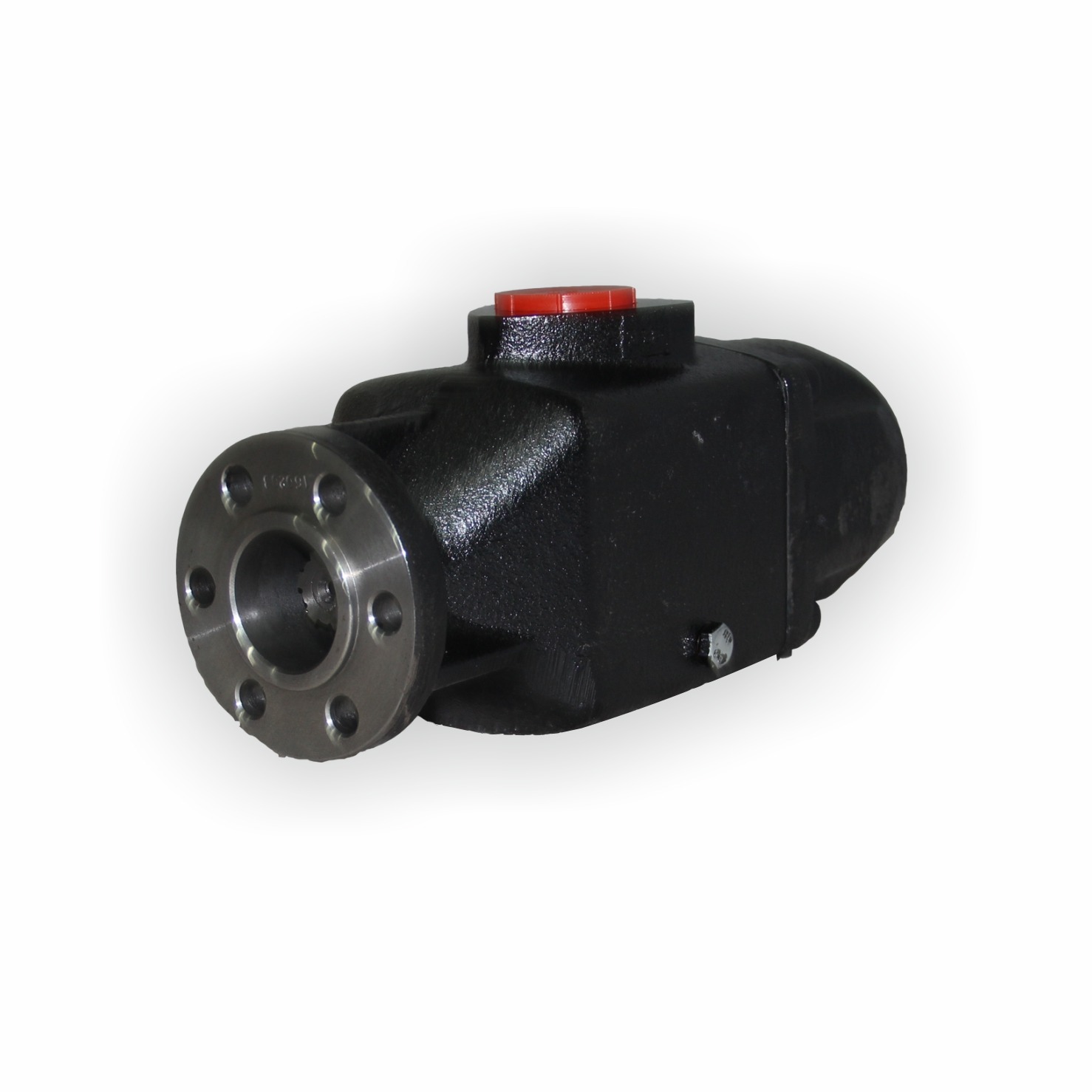

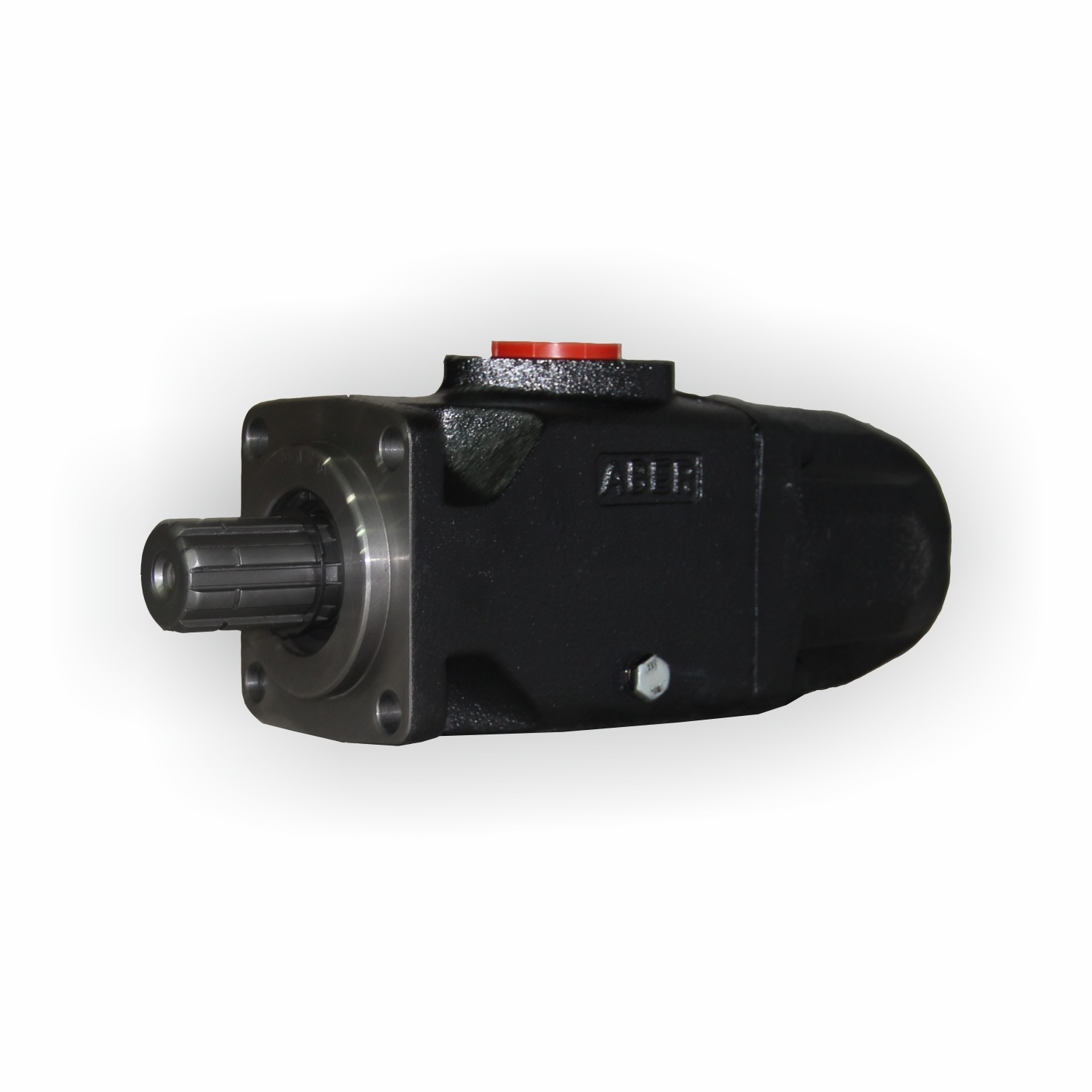

Straight Piston Pumps – BH SERIES | 14 – 110cc/rev

  • Maximum Efficiency
  • Robustness
  • Great Performance
  • Low Noise
  • Continous Flow
  • Bidirectional
Clear

Description

BH Series Straight Piston Pumps are very robust because of the radial and axial bearings and the high resistant materials in strategic points.

This axial piston pumps have single and double fixed displacement therefore available from 14 tp 110cm3/rev and also with a maximum pressure of 450bar.

All this results in very low noise and a continuous flow of the oil while getting the job done.

In addition this can be assembled directly into the PTO (Power Take Off) except if the PTO has two shafts without support.

BH Series Straight Piston Pumps are trustworthy to perform well.

FLANGE AND AXLE OPTIONS for the BH series Straight Piston Pumps

DIN

  • 5462
  • 5463
  • 9611 agricultural or interior
  • 5482 multiplier

SAE

  • 4 bolts
  • 2 bolts

8 TEETH

  • 12DP
DISPLACEMENT cc/rot (in3/rot)DIN 5462 ISO 7653 (EN)DIN 5463 UNI (UNI)DIN 9611 AGRICULTURAL (DA)DIN 9611 INTERIOR (DI)DIN 5482 MULTIPLIER (DM)SAE 4 BOLTS (B4/C4)SAE 2 BOLTS (B2/C2)8 TEETH 12DP (DB)
52 (3.2)BHS21716ENBHS21716UNIBHS21716DA-BHS21716DMBHS21716B4BHS21716B2-
60 (3.7)BHV21816ENBHV21816UNIBHV21816DA-BHV21816DMBHV21816B4BHV21816B2-
80 (4.9)BHV211113ENBHV211113UNIBHV211113DABHV211113DI-BHV211113C4BHV211113C2-
DISPLACEMENT cc/rot (in3/rot)DIN 5462 ISO 7653 (EN)DIN 5463 UNI (UNI)DIN 9611 AGRICULTURAL (DA)DIN 9611 INTERIOR (DI)DIN 5482 MULTIPLIER (DM)SAE 4 BOLTS (B4/C4)SAE 2 BOLTS (B2/C2)8 TEETH 12DP (DB)
14 (0.9)BHV21313ENBHV21313UNIBHV21313DA--BHV21313B4BHV21313B2BHV21313DB
DISPLACEMENT cc/rot (in3/rot)DIN 5462 ISO 7653 (EN)DIN 5463 UNI (UNI)DIN 9611 AGRICULTURAL (DA)DIN 9611 INTERIOR (DI)DIN 5482 MULTIPLIER (DM)SAE 4 BOLTS (B4/C4)SAE 2 BOLTS (B2/C2)8 TEETH 12DP (DB)
19(1.2)BHV21316ENBHV21316UNIBHV21316DA-BHV21316DMBHV21316B4BHV21316B2BHV21316DB
25(1.5)BHV21416ENBHV21416UNIBHV21416DA-BHV21416DMBHV21416B4BHV21416B2BHV21416DB
32(2.0)BHV21516ENBHV21516UNIBHV21516DA-BHV21516DMBHV21516B4BHV21516B2BHV21516DB
40(2.4)BHV21616ENBHV21616UNIBHV21616DA-BHV21616DMBHV21616B4BHV21616B2BHV21616DB
45(2.7)BHV21716ENBHV21716UNIBHV21716DA-BHV21716DMBHV21716B4BHV21716B2BHV21716DB
50(3.1)BHT25519ENBHT25519UNIBHT25519DA--BHT25519B4BHT25519B2-
60(3.7)BHT25619ENBHT25619UNIBHT25619DA--BHT25619B4BHT25619B2BHT25619DB
80(4.9)BHT22819ENBHT22819UNIBHT22819DABHT22819DI-BHT22819B4BHT22819B2-
86(5.2)BHV25913ENBHV25913UNIBHV25913DABHV25913DI-BHV25913B4BHV25913B2-
DISPLACEMENT cc/rot (in3/rot)DIN 5462 ISO 7653 (EN)DIN 5463 UNI (UNI)DIN 9611 AGRICULTURAL (DA)DIN 9611 INTERIOR (DI)DIN 5482 MULTIPLIER (DM)SAE 4 BOLTS (B4/C4)SAE 2 BOLTS (B2/C2)8 TEETH 12DP (DB)
32(2.0)BHZ25319ENBHZ25319UNIBHZ25319DA--BHZ25319B4BHZ25319B2BHZ25319DB
40(2.4)BHZ25419ENBHZ25419UNIBHZ25419DA--BHZ25419B4BHZ25419B2BHZ25419DB
50(3.1)BHZ25519ENBHZ25519UNIBHZ25519DA--BHZ25519B4BHZ25519B2BHZ25519DB
60(3.7)BHZ25619ENBHZ25619UNIBHZ25619DA--BHZ25619B4BHZ25619B2BHZ25619DB
70(4.3)BHZ25716ENBHZ25716UNIBHZ25716DA--BHZ25716B4BHZ25716B2-
80(4.9)BHZ25719ENBHZ25719UNIBHZ25719DA--BHZ25719B4BHZ25719B2-
110(6.7)BHZ25916ENBHZ25916UNIBHZ25916DABHZ25916DI-BHZ25916B4BHZ25916B2-

Additional information

For applications up to

400bar (5800psi), 350bar (5000psi), 320bar (4600psi), 250bar (3600psi)

Displacement cc/rot (in3/rot)

52 (3.2), 60 (3.7), 80 (4.9), 14 (0.9), 19 (1.2), 25 (1.5), 32 (2.0), 40 (2.4), 45 (2.7), 50 (3.1), 60 (3.7), 80 (4.9), 86 (5.2), 70 (4.3), 110 (6.7)

Flange and Axle Options

DIN 5642 EN (ISO7653), DIN 5463 UNI (UNI), DIN 9611 DA ( Agricultural), DIN 9611 DI (Interior), DIN 5482 DM (Multiplier), SAE B4/C4 (4bolts), SAE B2/C2 (2bolts), 8 Teeth DB (12DP)
