Description

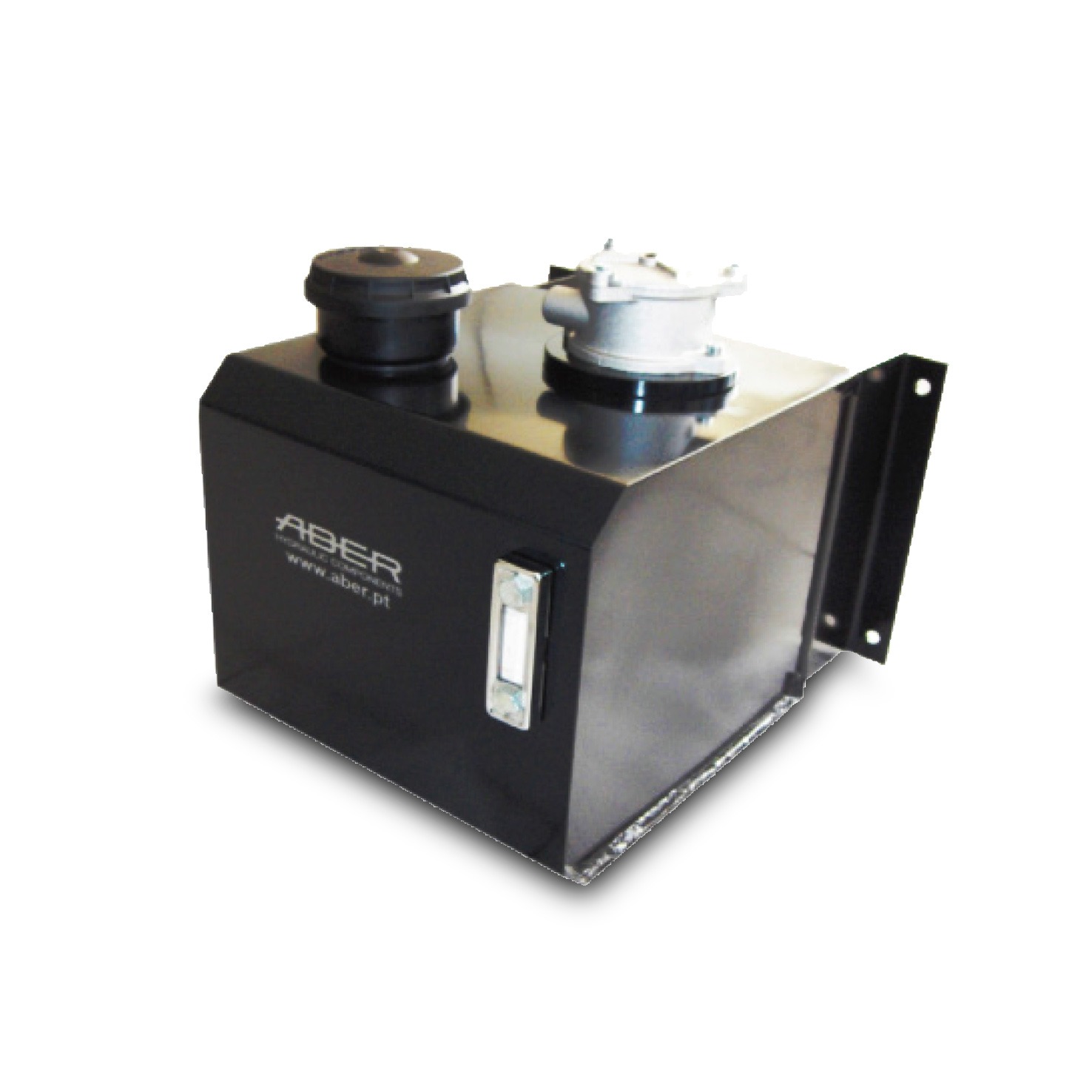

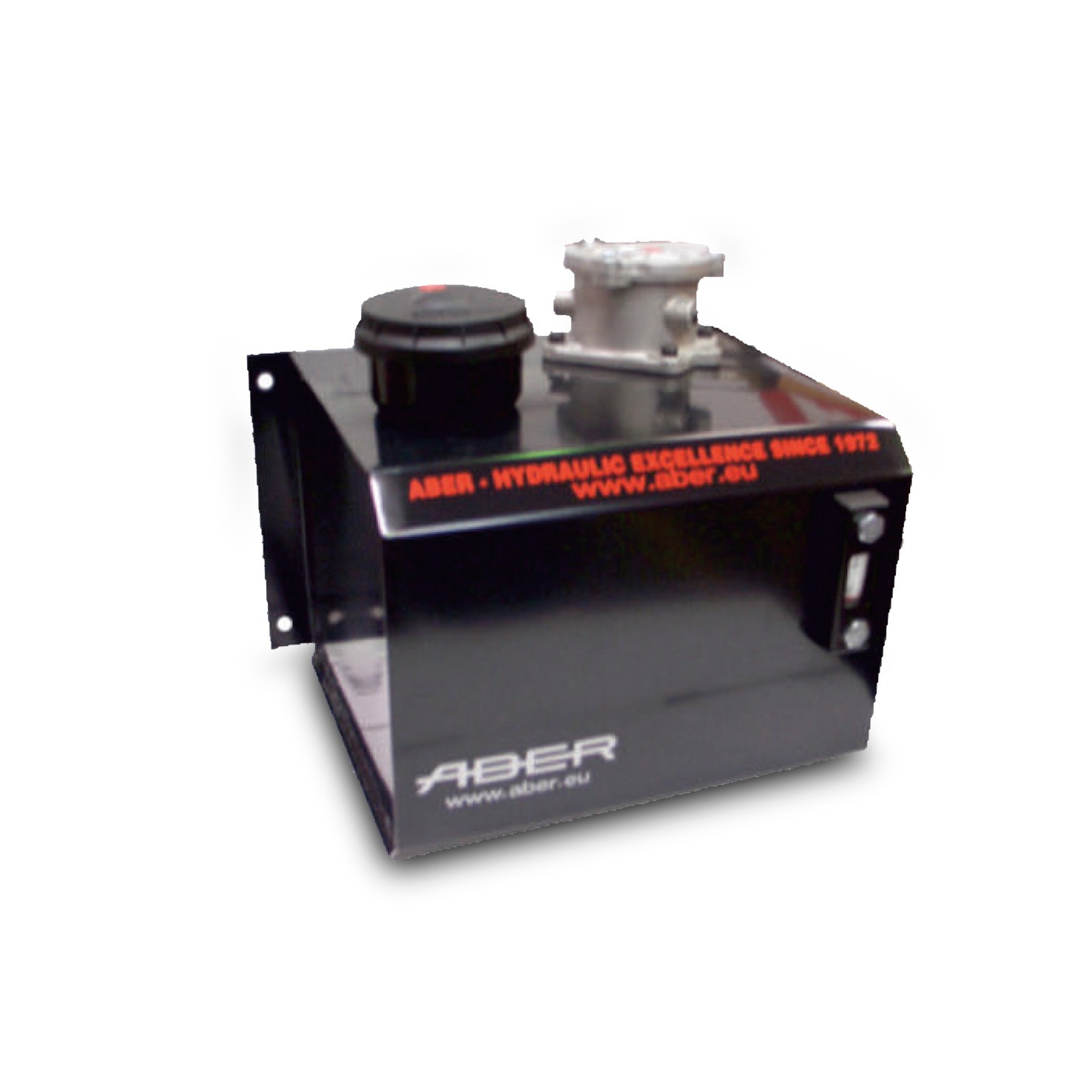

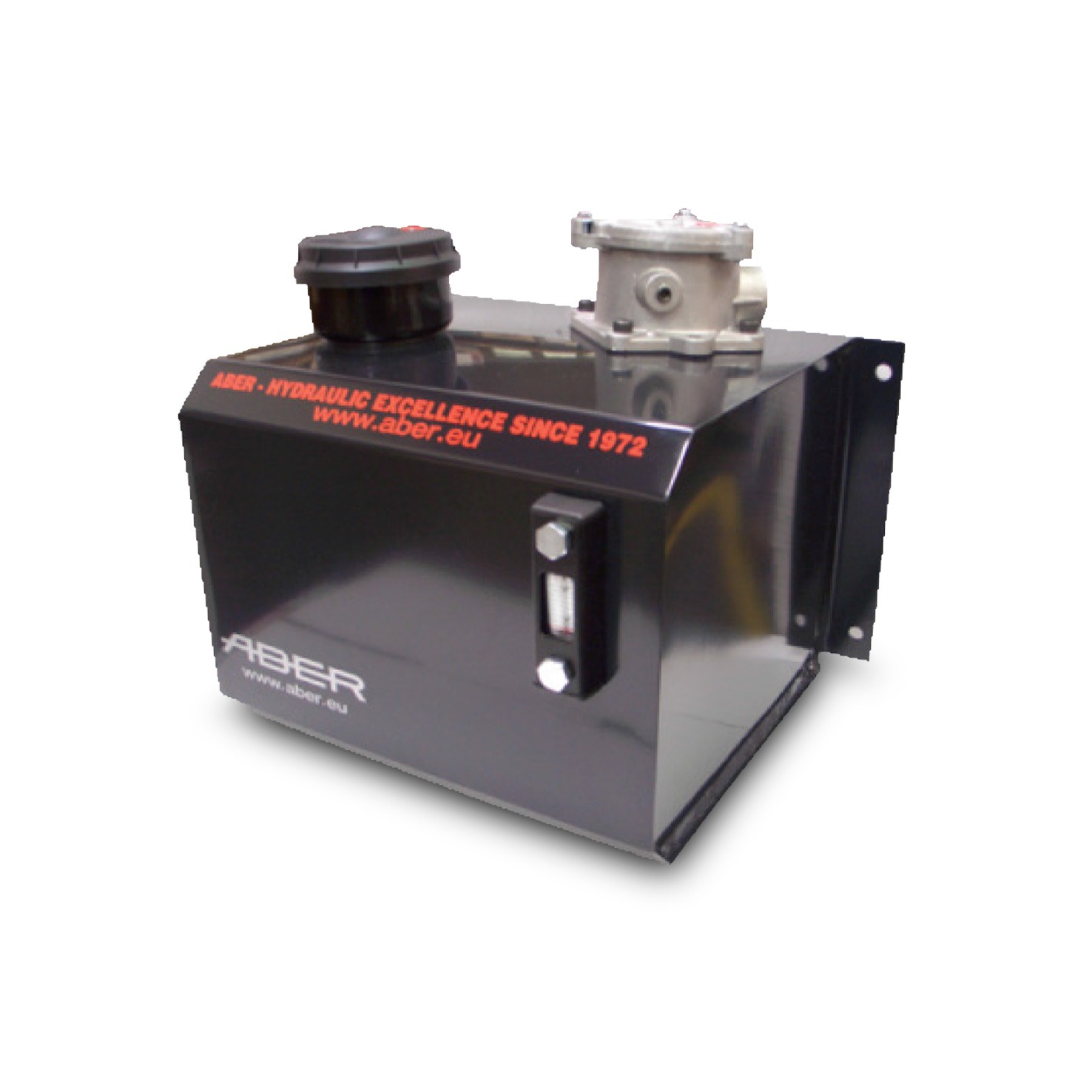

TS series – Side Mounting Oil Tank
On request many other configuration and volumes from the Side Mounting Oil Tank – TS Series can be produced. For non standard dimensions please contact us.
| Capacity (Liters) | Material | A (mm) | B (mm) | C (mm) | Suction Pipe *BSP |
|---|---|---|---|---|---|
| 25 | FE - AL - IX | 280 | 280 | 380 | 1" |
| 30 | FE - AL - IX | 280 | 320 | 360 | 1" |
| 35 | FE - AL - IX | 280 | 280 | 500 | 1" |
| 60 | FE - AL - IX | 310 | 380 | 560 | 1" 1/4 |
| 80 | FE - AL - IX | 500 | 360 | 500 | 1" 1/4 |
| Reference | Standard Capacity | Material | Level Indicator | Filter and Breather | Mounting Options | Optionals |
|---|---|---|---|---|---|---|
| TS | 25L | FE | R | N | 0 | M |
| 30L | AL | L | FB | 1 | ||
| 35L | IX | 1A | ||||
| 60L | 2 | |||||
| 80L | 3 | |||||
| 4 |
Example: TS 30 FE L FB 1 M
Tank with 30 liters, Side Mounting, made in Steel, with Long Optical Oil Level, Filler Cap with Integral Air Filter, Tank Top Return Filter (Single) with manometer
CODES DESCRIPTION
- FE – Steel
- AL – Aluminium
- IX – Stainless Steel
- R – Round Oil Level Indicator
- L – Long Optical Oil Level Indicator
- N – Ready for filler CAP Plug
- FB – Filler CAP Breather Plug with integral air filter
- 0 – Ready for Tank top oil return filter or flange for valve
- 1 – Tank Top Oil return filter single port
- 1 A – Tank Top Oil return filter double port
- 2 – Flange to Pneumatic Distributor and Oil Filter (Distributor not included)
- 3 – Flange to Electrical Distributor and Oil Filter (Distributor not included)
- 4 – Direct Oil Return
- M – Manometer for Return Filter
