Hydraulic Gear Pump – B35 Series | 64.5 – 154.2cc/rot

//Hydraulic Gear Pump – B35 Series | 64.5 – 154.2cc/rot

Hydraulic Gear Pump – B35 Series | 64.5 – 154.2cc/rot

  • High Performance
  • Long Life Period
  • Stronger
  • Reinforced
  • Bidirectional
  • Rear and Side Inlet/Outlet
Clear

Description

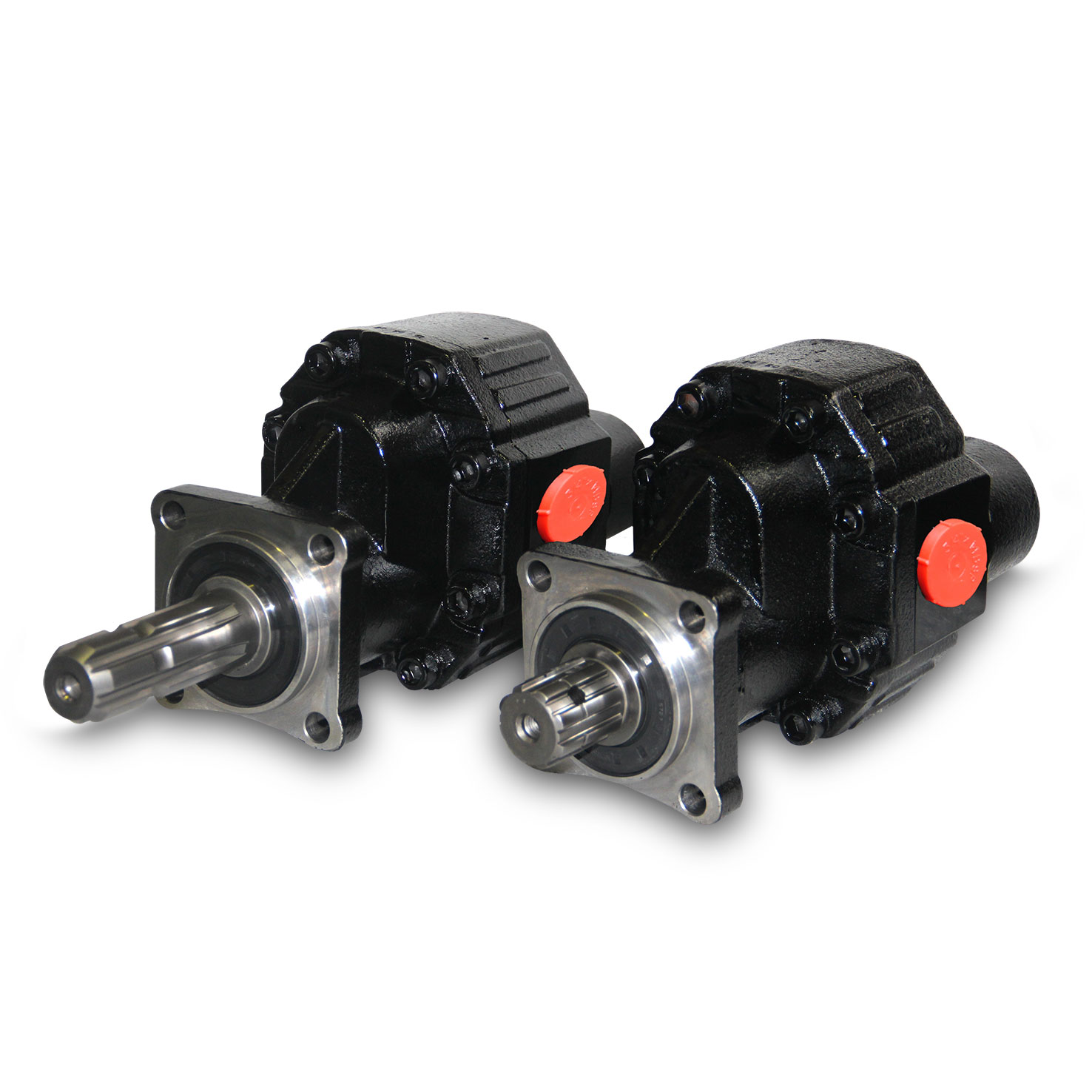

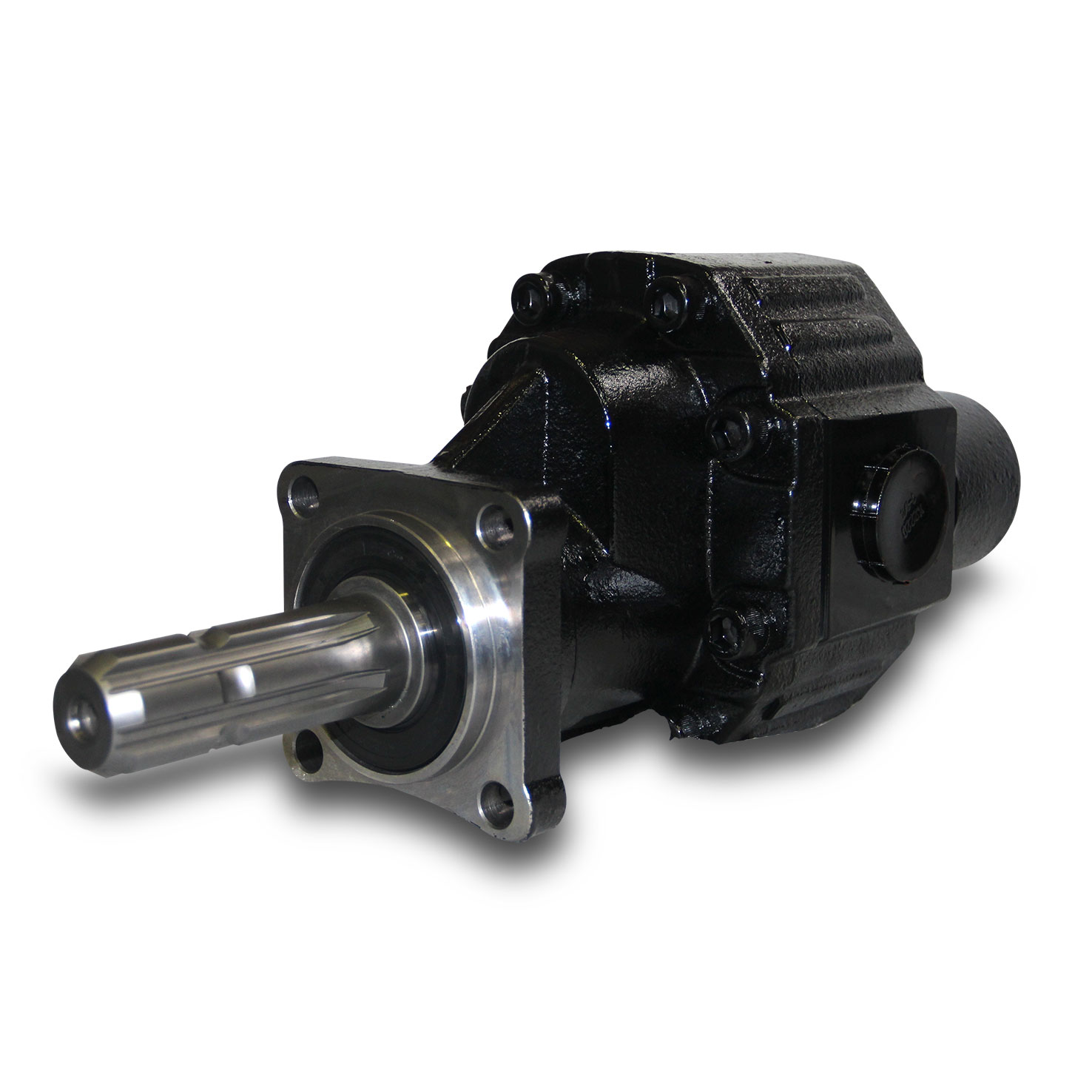

Hydraulic Gear Pump – B35 Series | 64.5 – 154.2cc/Rot

The B35 Series hydraulic gear pump bring another dimension to our range of products.

It is a high performance gear pump, double support by tapper roller bearings on the main shaft, built to endure extreme working conditions.

With a high performance and endurance regarding it’s size, it is the viable choice in the hydraulic oil pump solutions.
B35 series gear pump can operate at a maximum 300bar (4300psi) pressure and 2000rpm maximum rotation.
As a result we manufactured a gear pump with:

  • High Performance
  • Long Life period
  • Stronger
  • Reinforced
  • Bidirectional

and compatible with DIN Flange and Axle options:

  • 5462
  • 9611 agricultural
DISPLACEMENT cc/rot (in3/rot)MAXIMUM OPERATING PRESSURE bar (psi)MAXIMUM CONTINOUS ROTATION rpmDIN 5462 ISO 7653 (EN)DIN 9611 AGRICULTURAL (DA)
64.5 (3.9)300 (4300)2000B354GTR64B354GTR64DA
74.7 (4.5)300 (4300)2000B354GTR74B354GTR74DA
83.8 (5.1)270 (3900)1800B354GTR84B354GTR84DA
94.0 (5.7)260 (3800)1800B354GTR94B354GTR94DA
104.2 (6.3)250 (3600)1800B354GTR104B354GTR104DA
114.5 (7.0)250 (3600)1800B354GTR114B354GTR114DA
124.7 (7.6)240 (3500)1600B354GTR124B354GTR124DA
133.7 (8.1)230 (3300)1500B354GTR134B354GTR134DA
154.2 (9.4)185 (2700)1500B354GTR154B354GTR154DA

Additional information

Maximum Operating Pressure bar (psi)

300bar (4300psi), 270bar (3900psi), 260bar (3800psi), 250bar (3600psi), 240bar (3500psi), 230bar (3300psi), 185bar (2700psi)

Displacement cc/rot (in3/rot)

64.5 (3.9), 74.7 (4.5), 83.8 (5.1), 94.0 (5.7), 104.2 (6.3), 114.5 (7.0), 124.7 (7.6), 133.7 (8.1), 154.2 (9.4)

Flange and Axle Options

DIN 5642 EN (ISO7653), DIN 9611 DA (Agricultural)
