PTO Power Take Off 26000 / 28000 SERIES

//PTO Power Take Off 26000 / 28000 SERIES

PTO Power Take Off 26000 / 28000 SERIES

Model *

Input Gear *

Ratio *

Assembly Arrangements *

OutPut Type *

Shifter Type *

Optional Lubrication *

SKU: TF260 | 261 | 280 | 281 Category: Tags: , , ,

Description

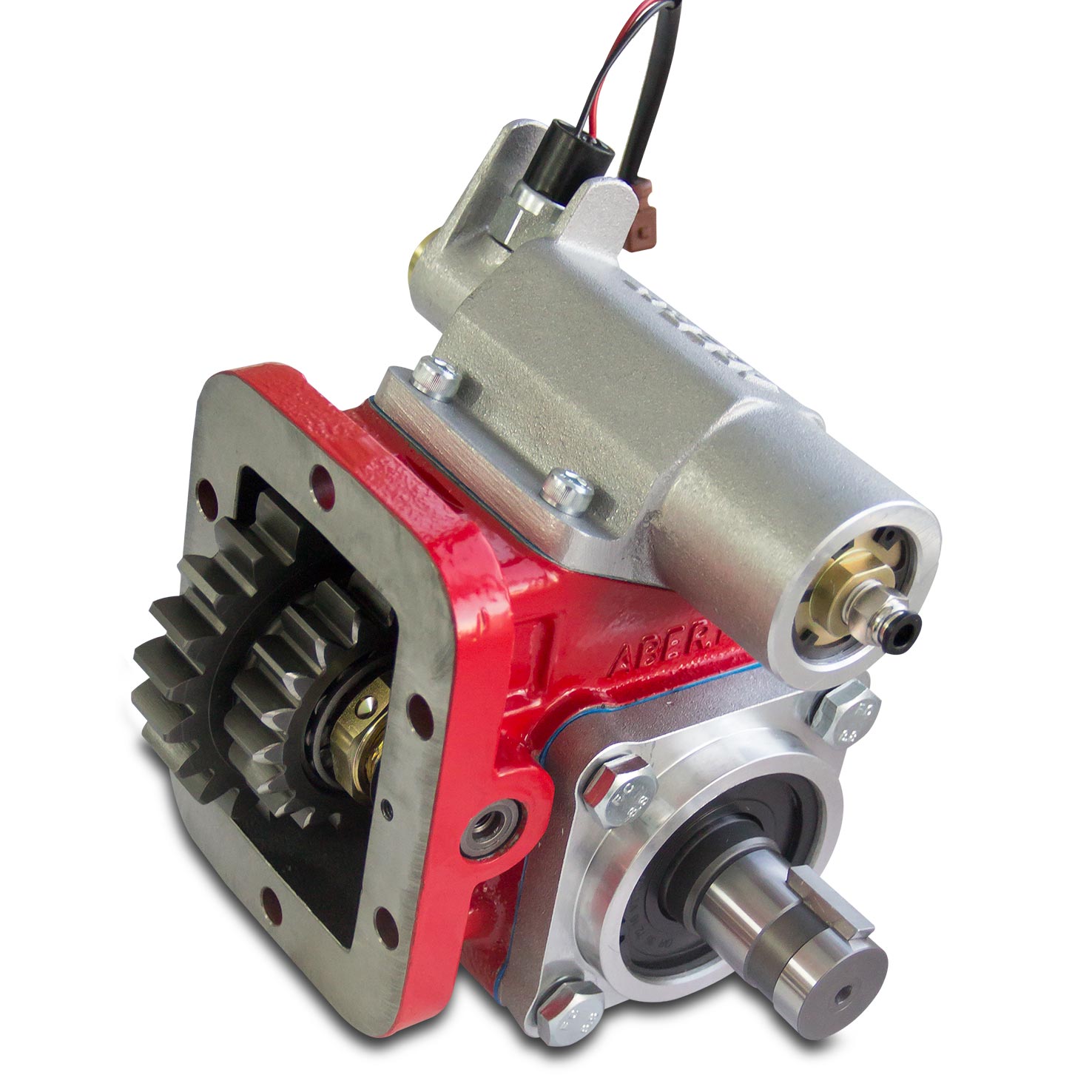

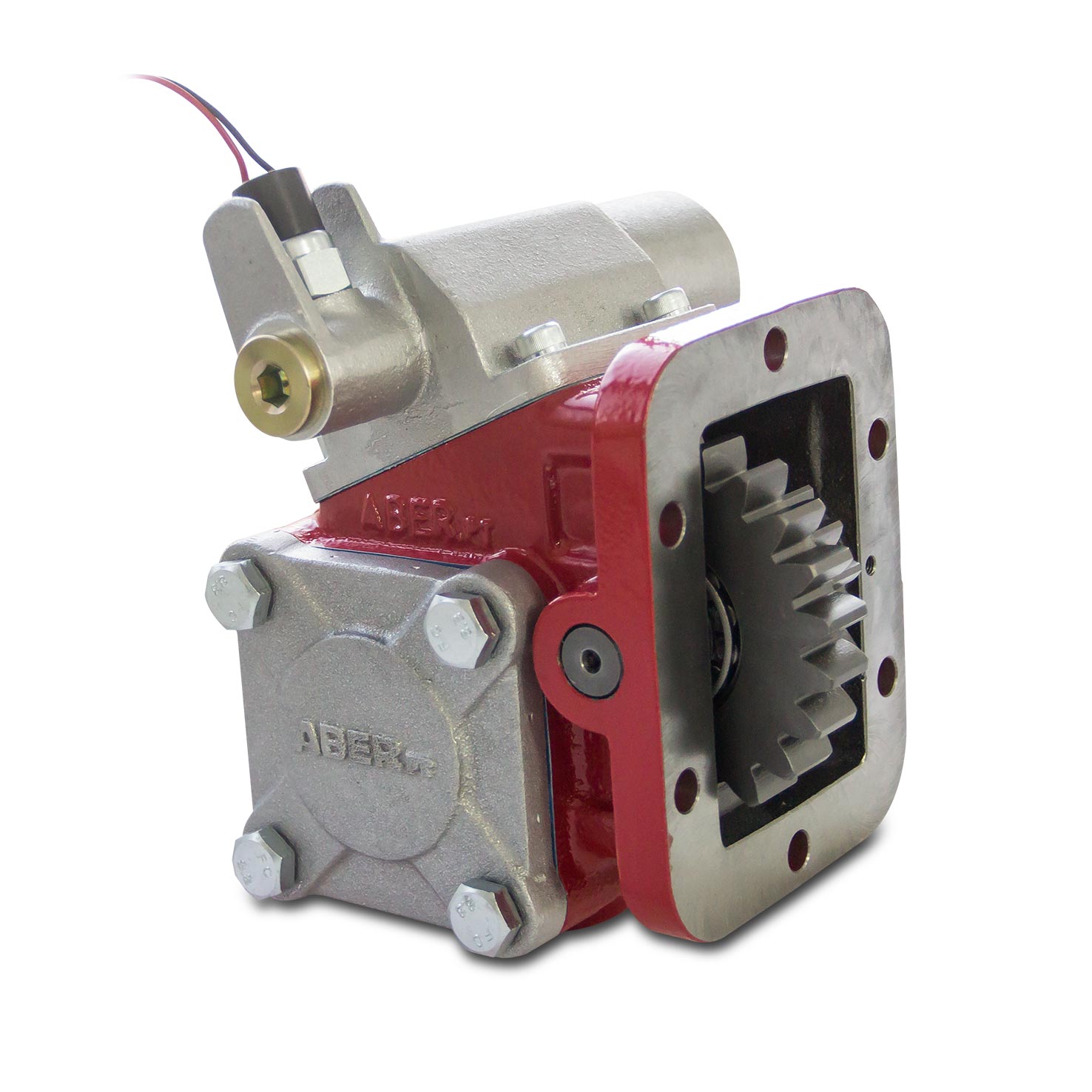

PTO Power Take Off 26000 / 28000 SERIES

PTO Power Take Off 26000 / 28000 SERIES developed by ABER  is compatible with many Gear Box models.

Control type for PTO Power Take Off 26000 / 28000 SERIES:

  • Mechanic
  • Pneumatic

For further detailed information please download the Technical Sheets.

MODELINPUT GEARRATIOASSEMBLY ARRANGEMENTSOUTPUT TYPESHIFTER TYPEOPTIONAL LUBRICATION
Standard mounting, 6 boltsUNIVERSAL 6/8P SPUR73%Right forwardISO 4 boltPneumatic with air kit AOHCACC1None
Deep mounting, 6 boltsSPICER 6P LH 87%Right rearSAE “B” 2/4 bolt 13T rotatablePneumatic without air kitGreasable output shaft
Standard mounting, 8 boltsFULLER 6.1P LH95%Left forwardSAE “BB” 2/4 bolt 15T rotatablePneumatic with air kit ABCD73
Deep mounting, 8 boltsFULLER 7P LH125%Left rearSAE 1 1/4″ round shaftPneumatic with air kit ABCD83
SPICER 7P LH165%Wire with 10’ cable
Wire without cable

Example: TF 260 01 C 1 SE N X

MODEL
TF 260 – Standard mounting, 6 bolts
TF 261 – Deep mounting, 6 bolts
TF 280 – Standard mounting, 8 bolts
TF 281 – Deep mounting, 8 bolts

INPUT GEAR
01 – UNIVERSAL 6/8P SPUR
05 – SPICER 6P LH
18 – FULLER 6.1P LH
28 – FULLER 7P LH
34 – SPICER 7P LH

RATIO
C – 73%
E – 87%
J – 95%
O – 125%
T – 165%

ASSEMBLY ARRANGEMENTS
1 – Right forward
2 – Right rear
3 – Left forward
4 – Left rear

OUTPUT TYPE
EN – ISO 4 bolt
RA – SAE “B” 2/4 bolt 13T rotatable
RB – SAE “BB” 2/4 bolt 15T rotatable
SE – SAE 1 1/4″ round shaft

SHIFTER TYPE
A – Pneumatic with air kit AOHCACC1
N – Pneumatic without air kit
S – Pneumatic with air kit ABCD73
U – Pneumatic with air kit ABCD83
W – Wire with 10’ cable
X – Wire without cable

OPTIONAL LUBRICATION
X – None
G – Greasable output shaft

* Also available with electric/mechanic sensor ON/OFF
