Description

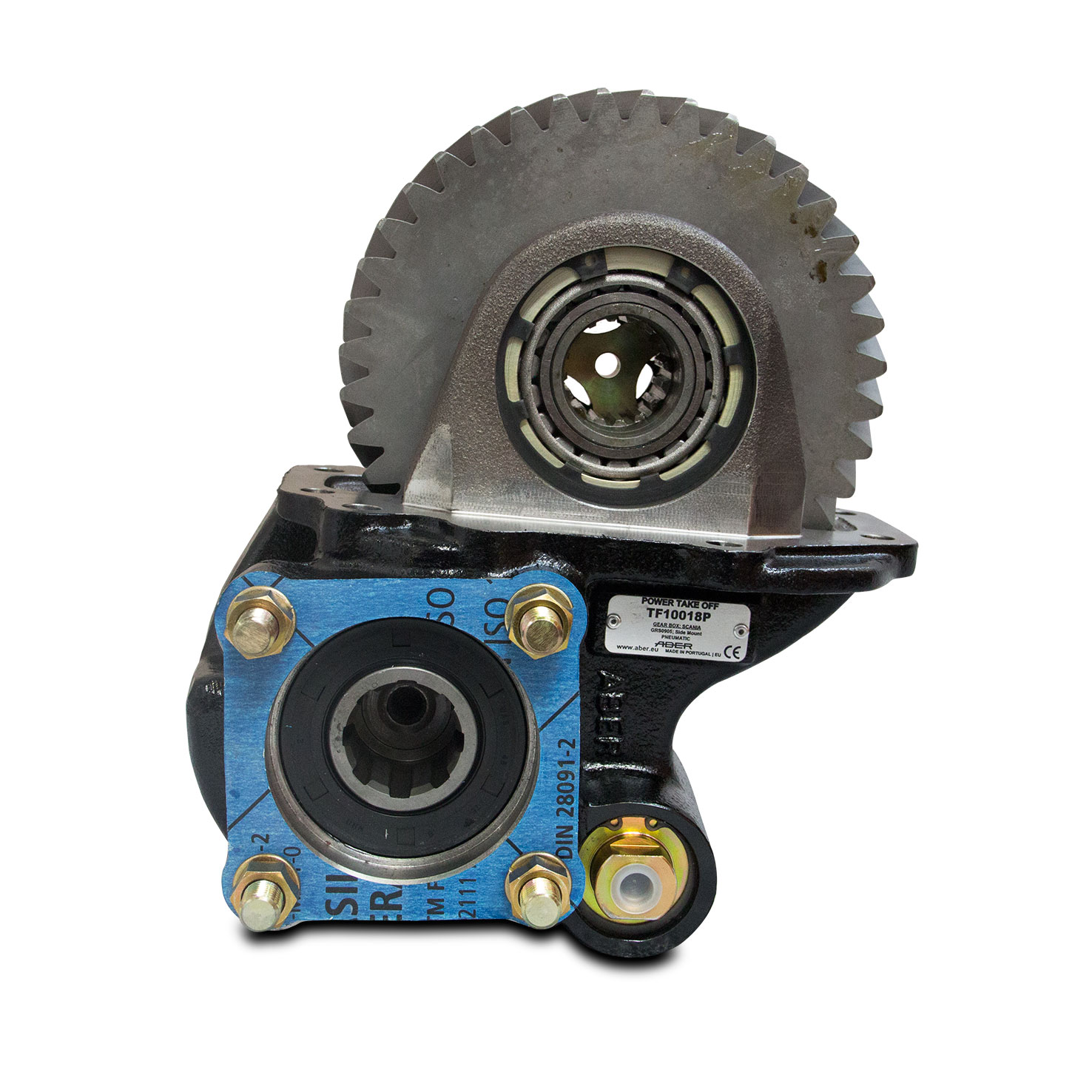

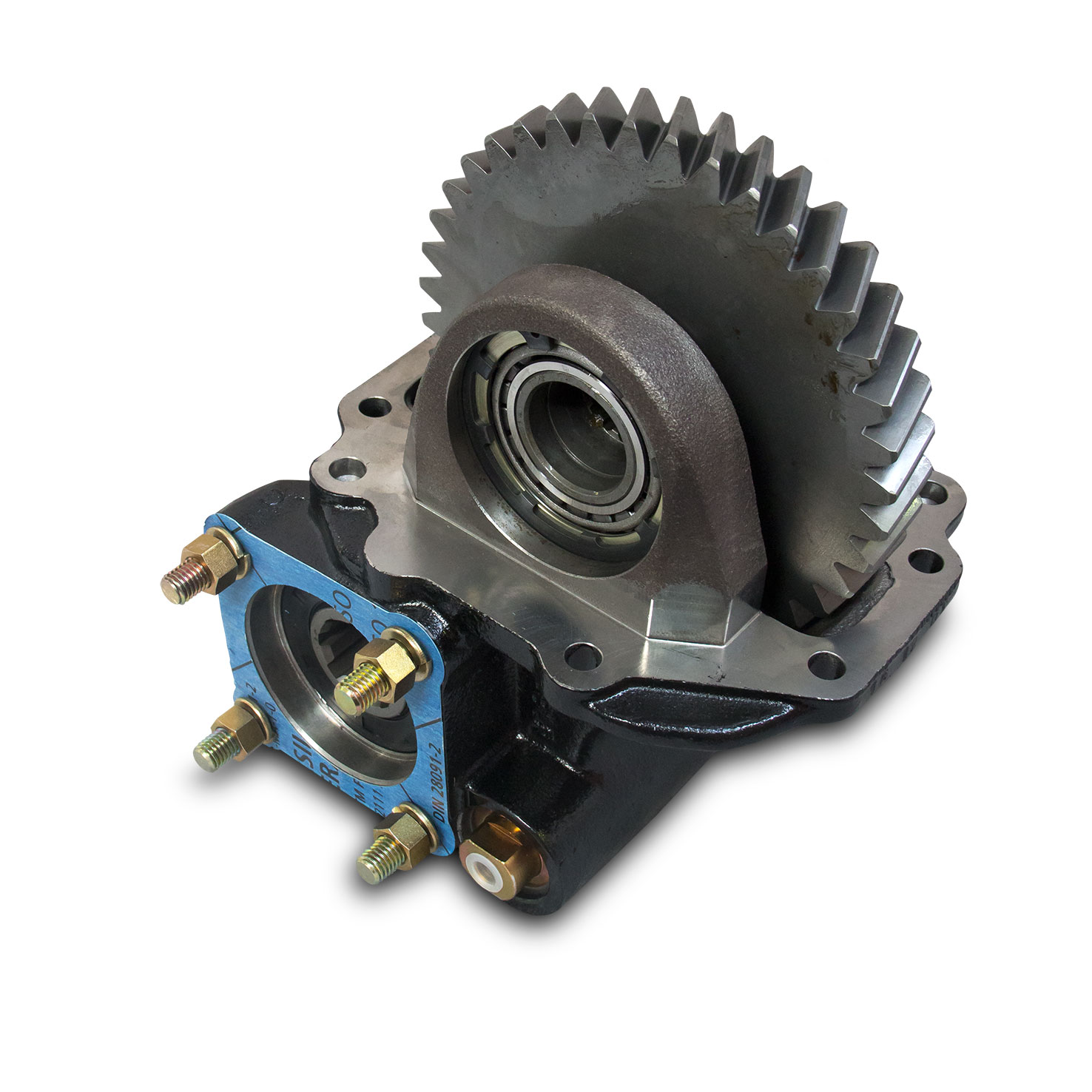

SCANIA PTO Power Take Off for heavy vehicle and trucks

ABER range of SCANIA PTO Power Take Off for the most used Gearboxes with different ratios and pneumatic control.

We produce PTO’s for the most used Gearboxes in SCANIA heavy vehicles and trucks.
Furthermore, the TF10017P and TF10018P models are made for SIDE MOUNT of the PTO.
All the models are also available with Electric/Mechanic sensor on/off.
In conclusion you can choose from the multiple choices of SCANIA Power Take Off, the one that better suits your needs.

REFERENCEOBSERVATIONGEARBOXRATIOCONTROL
TF10005P*-GR8011:1,25PNEUMATIC
TF10007P*-GRS890 ; GRS900 ; GRS920 ; GRS-900R ; GRSH-9001:1,19PNEUMATIC
TF10009P*-GR-900 ; GR900R ; GRH-9001:1,1PNEUMATIC
TF10011P*-GRS905 700 Nm Shaft 524mm1:1,1PNEUMATIC
TF10012P*-GRS905 1200 Nm Shaft 524mm1:1,1PNEUMATIC
TF10013P*-GRS905 700 Nm Shaft 620mm1:1,1PNEUMATIC
TF10014P*-GRS905 1200 Nm Shaft 620mm1:1,1PNEUMATIC
TF10016P*-GRSO905 Shaft 620 mm1:1,1PNEUMATIC
TF10017P*SIDE MOUNTGR875 ; GR905 ; GRS895 ; GRS9051:1,33**PNEUMATIC
TF10018P*SIDE MOUNTGRSO9051:2,17**PNEUMATIC
REFERENCEOBSERVATIONGEARBOXRATIOCONTROL
VK10014*-GRS905
VK10016*-GRSO905

* Also available with electric/mechanic sensor ON/OFF

Additional information

Gear box

GR801, GRS890; GRS900; GRS920; GRS-900R; GRSH-900, GR-900; GR900R;GRH-900, GRS905 700Nm Shaft 524mm, GRS905 1200Nm Shaft 524mm, GRS905 700Nm Shaft 620mm, GRS905 1200Nm Shaft 620mm, GRSO905 Shaft 620mm, GR875; GR905; GRS895; GRS905, GRSO905

Ratio

1:1,25, 1:1,19, 1:1,1, 1:1,33 (main output), 1:2,17 (main output)

Control Type

Pneumatic

Observation

None, Side Mount
