Description

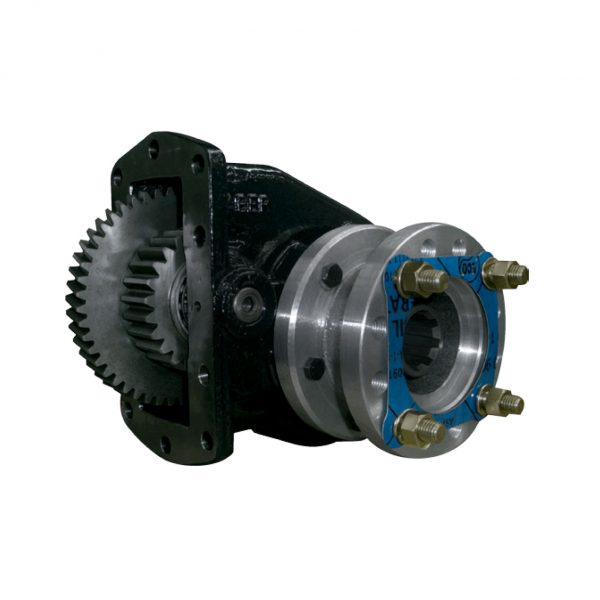

PTO Power Take Off ALLISON

PTO Power Take Off ALLISON from ABER suits the 10.16P RH gearbox with left or right side assembly.

This PTO ALLISON has also some Flange and Axle Options: EN or SAE B; 2 or 4 bolts.

It is controled by Contant mesh. Please download the technical sheet for more detailed information.

REFERENCEOBSERVATIONGEARBOXRATIOCONTROL
TF10A74MRENRIGHT SIDE ASSEMBLY EN OUTPUT - ISO 4 BOLT10.16P RH1:0,74CONSTANT MESH
TF10A74MLENLEFT SIDE ASSEMBLY EN OUTPUT - ISO 4 BOLT10.16P RH1:0,74CONSTANT MESH
TF10A74MRB2RIGHT SIDE ASSEMBLY SAE B OUTPUT - 2 BOLT10.16P RH1:0,74CONSTANT MESH
TF10A74MLB2LEFT SIDE ASSEMBLY SAE B OUTPUT - 2 BOLT10.16P RH1:0,74CONSTANT MESH
TF10A74MRB4RIGHT SIDE ASSEMBLY SAE B OUTPUT - 4 BOLT10.16P RH1:0,74CONSTANT MESH
TF10A74MLB4LEFT SIDE ASSEMBLY SAE B OUTPUT - 4 BOLT10.16P RH1:0,74CONSTANT MESH

Additional information

Gear Box

10.16P RH

Control

Constant Mesh

Ratio

1:0,74

Observation

Right Side Assembly EN Output – ISO 4 Bolt, Left Side Assembly EN Output – ISO 4 Bolt, Right Side Assembly SAE B Output – 2 Bolt, Left Side Assembly SAE B Output – 2 Bolt, Right Side Assembly SAE B Output – 4 Bolt, Left Side Assembly SAE B Output – 4 Bolt
