Iron Cast Bent Axis Piston Pumps – BIF SERIES | 17 – 81cc/rot

  • Higher Pressure
  • Less Pulse
  • Maximum Efficiency
  • Compact Design
  • Fits on ZF Astronic Gearbox Transmissions
Clear

Description

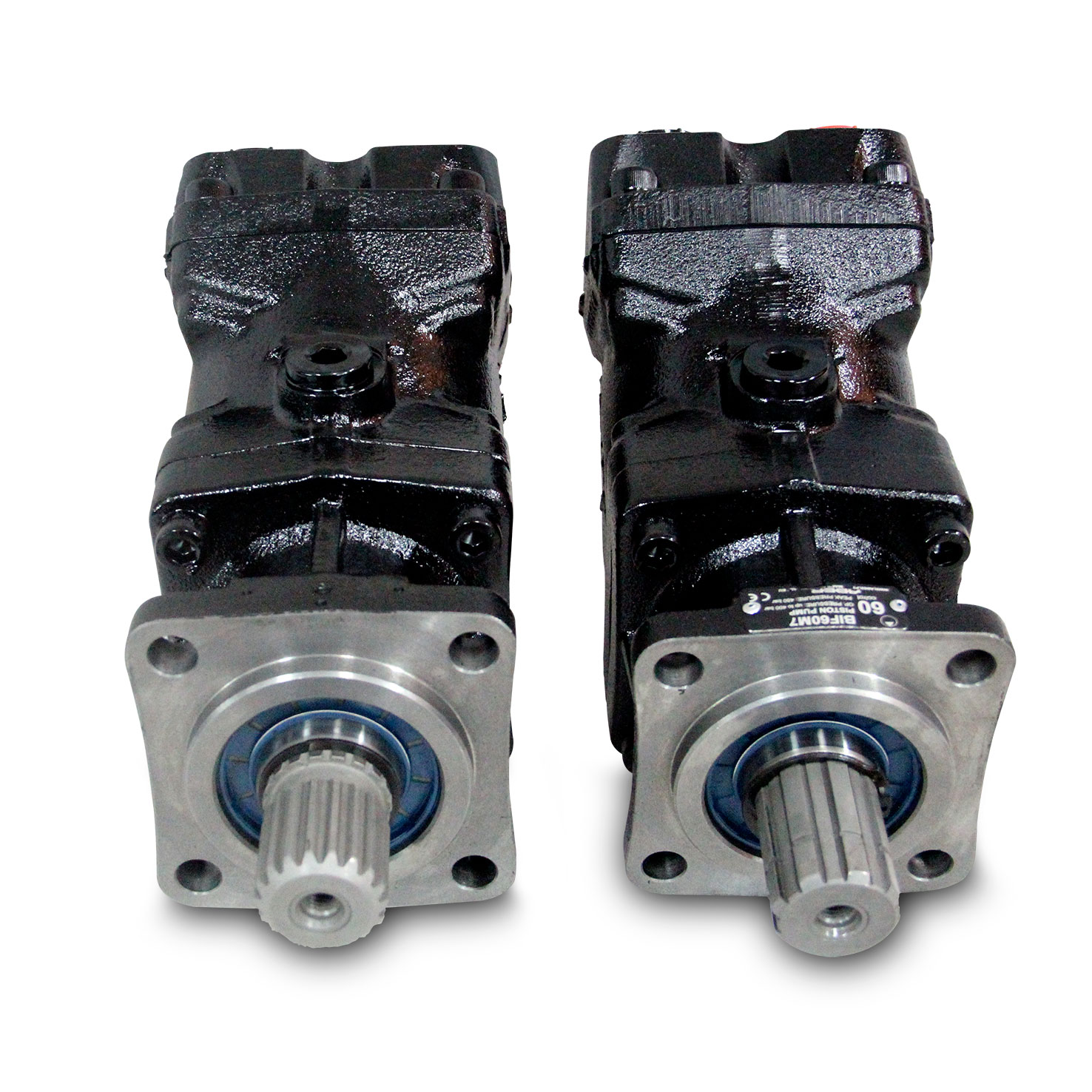

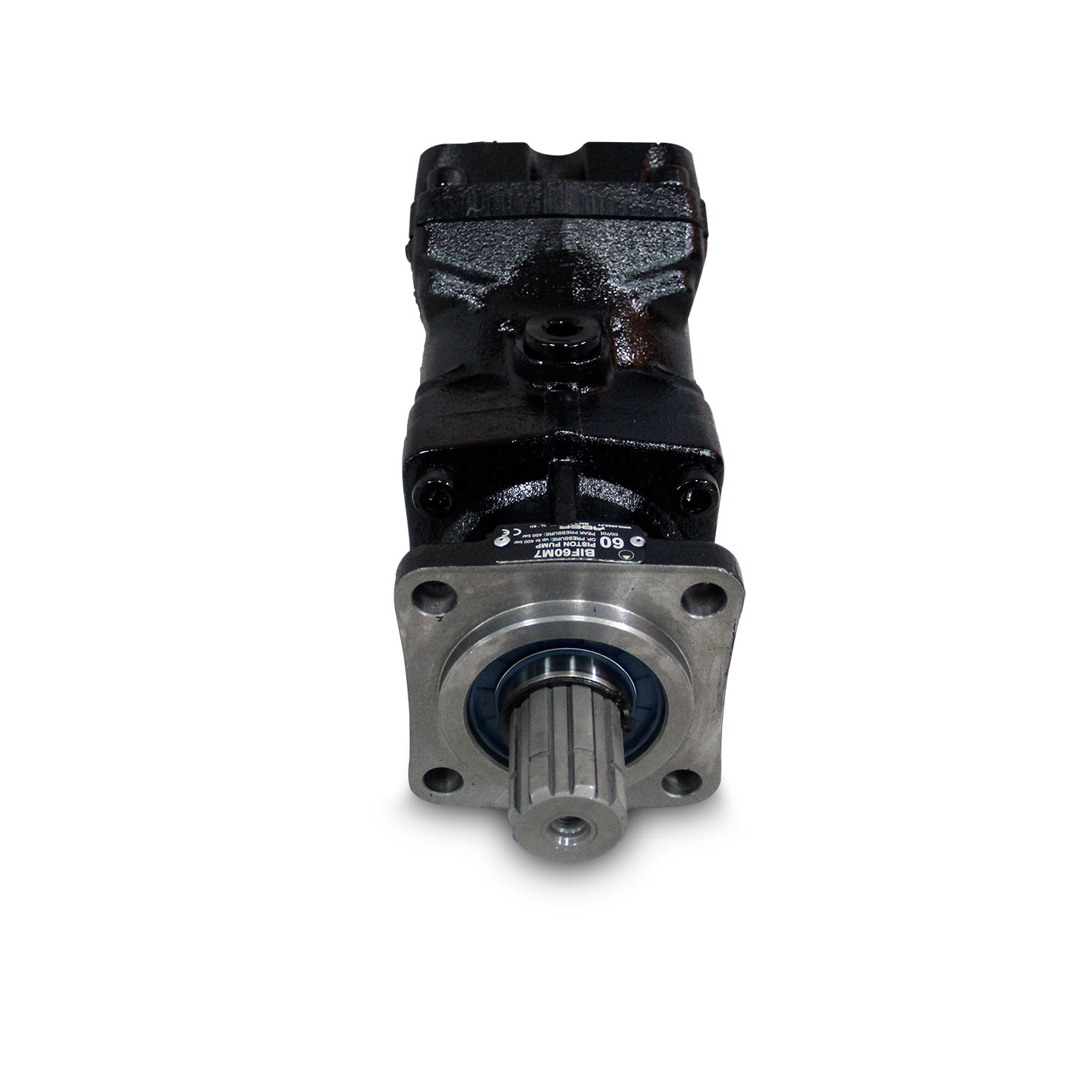

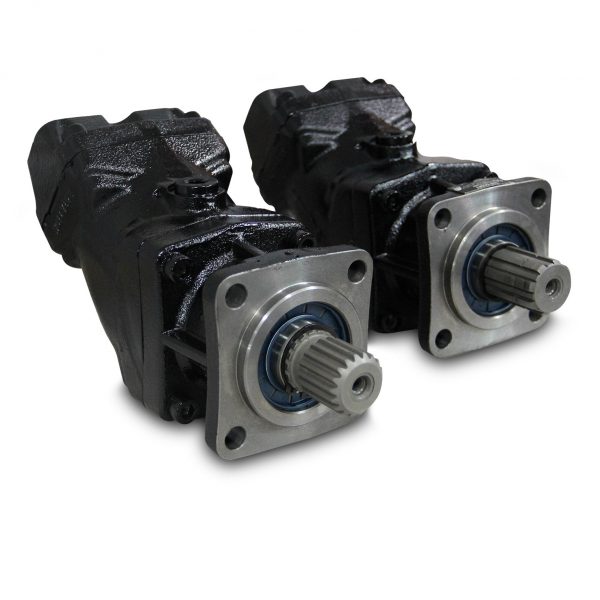

ABER BIF – The smallest Iron Cast Bent Axis Piston Pump on the market

Iron cast Bent Axis Piston Pumps – BIF Series are very compact and designed for efficiency.

Configured to give particular advantage on mobile applications such as trucks with high collision probability between the rear axle truck transmission and the hydraulic pump.

These pumps have  an excellent performance,  very low noise and a continuous flow of the oil.
This is due to the number of pistons built-in (5 pistons on BI_M5, 7 pistons on BI_M7).

BIF pumps are equipped with seals that bear extreme environmental temperatures.

Futhermore, the BIF Series allows a change in the rotation way easily and safely for all the pump components.

Main Features of the BIF Iron Cast Bent Axis Piston Pumps

  • Higher Pressure
  • Less Pulse
  • Maximum Efficiency
  • Compact Design
  • Fits on ZF Astronic Gearbox Transmissions

FLANGE AND AXLE OPTIONS

  • DIN
    • 5462
    • 9611 agricultural
    • 5482 multiplier
    • 5480
  • SAE B*
    • 4 bolts
    • 2 bolts
DISPLACEMENT cc/rot (in3/rot)DIN 5462 ISO 7653 (EN)DIN 9611 AGRICULTURAL (DA)DIN 9611 INTERIOR (DI)SAE* 4 BOLTS (B4/C4)SAE* 2 BOLTS (B2/C2)
57+28(3.5+1.7)BID57+28PBID57+28PDABID57+28PDIBID57+28PB4BID57+28PB2
38+37(2.3+2.3)BID40+40PBID40+40PDABID40+40PDIBID40+40PB4BID40+40PB2
80+38(4.9+2.3)BID80+40HBID80+40HDABID80+40HDIBID80+40HC4BID80+40HC2
58+60(3.5+3.7)BID55+55HBID55+55HDABID55+55HDIBID55+55HC4BID55+55HC2
DISPLACEMENT cc/rot (in3/rot)DIN 5462 ISO 7653 (EN)DIN 9611 AGRICULTURAL (DA)DIN 9611 INTERIOR (DI)SAE* 4 BOLTS (B4/C4)SAE* 2 BOLTS (B2/C2)
70 + 66 (4.3 + 4.0)BID70+70HBID70+70HDABID70+70HDIBID70+70HC4BID70+70HC2

Additional information

For applications up to

400bar (5800psi), 350bar (5000psi)

Displacement cc/rot (in3/rot)

17 (1.0), 26 (1.6), 32 (2.0), 42 (2.6), 50 (3.1), 60 (3.7), 81 (4.9)

Flange and Axle Options

DIN 5642 EN (ISO7653), DIN 9611 DA ( Agricultural), DIN 5482 DM (Multiplier), DIN 5480 IA1 (ISO3019-2), SAE B B4 (4bolts), SAE B B2 (2bolts)
