Heavy Duty Gearboxes – GB Series

Clear

Description

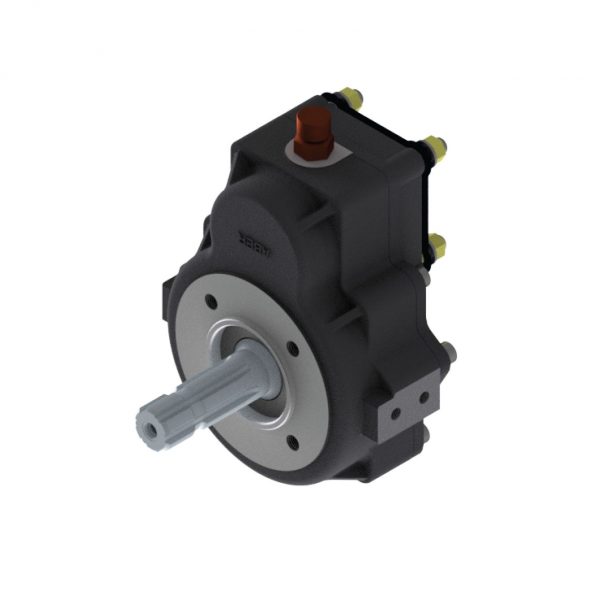

Heavy Duty Gearbox – GB Series

This Gearbox is the open response to the market demands for a system with a high torque and speed requirements.

This has a maximum continuous torque of 800Nm and an internal ratio of 1:2.5.

A high range of flanges and axle compatible for industrial and agricultural applications are available:

  • INPUT AXLE: DIN 5462 (EN)
  • OUTPUT AXLE: DIN 9611 DA and DIN 9611 DI

As a result there are some unique features for the GB series:

  • Heavy Duty
  • Compact design
  • High ratios
  • High Torques
  • For agriculture and industrial
REFERENCEINPUT AXLEOUTPUT AXLEINTERNAL RATIOMÁX CONT. TORQUE (N.m)
GBDA25ENDIN 5462 (A8x32x36) (EN)DIN 9611 (B6x30x35) (DA)1:2.5800
GBDI25ENDIN 5462 (A8x32x36) (EN)DIN 9611 (A6x30x35) (DI)1:2.5800

Note: Different internal ratios and axle combinations can be made.

Additional information

Select the reference

GBDA25EN, GBDI25EN
