Suction Fittings

/, GEAR PUMPS/Suction Fittings
Hydraulic Suction Fittings from ABER

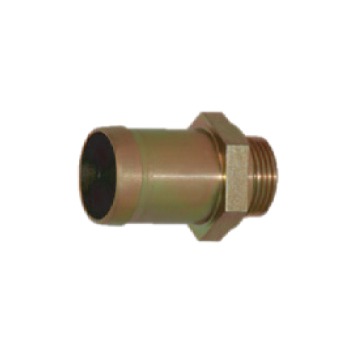

Admission Connectors

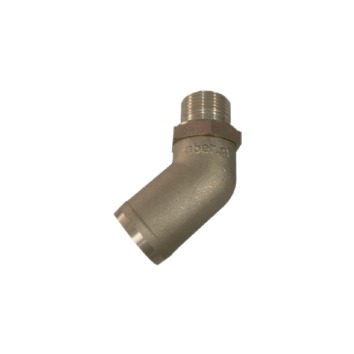

Admission Connectors

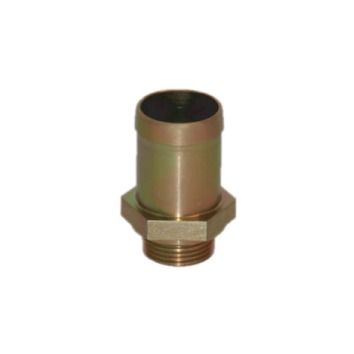

Admission Connectors

Suction Fittings

Request a Quote
SKU: N/A Categories: , Tag:

Description

DOWNLOAD | TECHNICAL DATA SHEETS

Hydraulic Suction Fittings

Indicative selection for the most common applications of the Hydraulic Suction Fittings.

(Pump Rotation Between 800 and 1200 rpm)

VARIABLE DISPLACEMENT PUMPS | VDP Series

REFERENCEPUMP DISPLACEMENT(cc/rot)THREADHOSEMATERIALSHAPE
AD11220040 ; 601” 1/2 BSP2”SteelStraight
AD11221276 ; 92 ; 1091” 1/2 BSP2” 1/2SteelStraight

BENT AXIS PISTON PUMPS | BI Series

REFERENCEPUMP DISPLACEMENT(cc/rot)THREADHOSEMATERIALSHAPE
AD10011417 ; 26 ; 32 ; 421” BSP1” 1/4SteelStraight
AD10011217 ; 26 ; 32 ; 42 ; 50 ; 601” BSP1” 1/2SteelStraight
AD10020050 ; 601” BSP2”SteelStraight
AD11420080 ; 811” 1/4 BSP2”SteelStraight
AD112134108 ; 126 ; 1361” 1/2 BSP1” 3/4SteelStraight
AD112200108 ; 126 ; 1361” 1/2 BSP2”SteelStraight
AD200200142 ; 156 ; 1722” BSP2”SteelStraight
AD200212142 ; 156 ; 1722” BSP2” 1/2SteelStraight
A4510011417 ; 26 ; 32 ; 421” BSP1” 1/4BrassElbow 45°
A4510011217 ; 26 ; 32 ; 42 ; 50 ; 601” BSP1” 1/2BrassElbow 45°
A4510020050 ; 601” BSP2”BrassElbow 45°
A4511420080 ; 811” 1/4 BSP2”BrassElbow 45°
A45112200108 ; 126 ; 1361” 1/2 BSP2”BrassElbow 45°
A45200200142 ; 156 ; 1722” BSP2”BrassElbow 45°
A9010011417 ; 26 ; 32 ; 421” BSP1” 1/4BrassElbow 90°
A9010011217 ; 26 ; 32 ; 42 ; 50 ; 601” BSP1” 1/2BrassElbow 90°
A9010013450 ; 601” BSP1” 3/4BrassElbow 90°
A9010020050 ; 601” BSP2”BrassElbow 90°
A9011413480 ; 811” 1/4 BSP1” 3/4BrassElbow 90°
A9011420080 ; 811” 1/4 BSP2”BrassElbow 90°
A90112200108 ; 126 ; 1361” 1/2 BSP2”BrassElbow 90°
A90200200142 ; 156 ; 1722” BSP2”BrassElbow 90°

STRAIGHT PISTON PUMPS | BH Series

REFERENCEPUMP DISPLACEMENT(cc/rot)THREADHOSEMATERIALSHAPE
AD11411414 ; 19 ; 25 ; 321” 1/4 BSP1” 1/4SteelStraight
AD11411214 ; 19 ; 25 ; 32 ; 40 ; 45 ; 50 ; 60*1” 1/4 BSP1” 1/2SteelStraight
AD11413460*1” 1/4 BSP1” 3/4SteelStraight
AD11420060*1” 1/4 BSP2”SteelStraight
AD11211252 ; 60**1” 1/2 BSP1” 1/2SteelStraight
AD11213452 ; 60**1” 1/2 BSP1” 3/4SteelStraight
AD11220052 ; 60** ; 70 ; 80* ; 86 ; 1101” 1/2 BSP2”SteelStraight
AD20020080** ; 86 ; 1102” BSP2”SteelStraight
A4511411214 ; 19 ; 25 ; 32 ; 40 ; 45 ; 50 ; 60*1” 1/4 BSP1” 1/2BrassElbow 45°
A4511420060*1” 1/4 BSP2”BrassElbow 45°
A4511211252 ; 60**1” 1/4 BSP1” 1/2BrassElbow 45°
A9011411414 ; 19 ; 25 ; 321” 1/4 BSP1” 1/4BrassElbow 90°
A9011411214 ; 19 ; 25 ; 32 ; 40 ; 45 ; 50 ; 60*1” 1/4 BSP1” 1/2BrassElbow 90°
A9011413460*1” 1/4 BSP1” 3/4BrassElbow 90°
A9011211252 ; 60**1” 1/2 BSP1” 1/2BrassElbow 90°
A9011220052 ; 60** ; 70 ; 80* ; 86 ; 1101” 1/2 BSP2”BrassElbow 90°
A9020020080** ; 86 ; 1102” BSP2”BrassElbow 90°

STRAIGHT PISTON PUMPS WITH TWO OUTLETS | BHD Series

REFERENCEPUMP DISPLACEMENT(cc/rot)THREADHOSEMATERIALSHAPE
AD11411220+20 ; 25+25 ; 30+301” 1/4 BSP1” 1/2SteelStraight
AD11413430+301” 1/4 BSP1” 3/4SteelStraight
AD11420030+301” 1/4 BSP2”SteelStraight
AD20020045+45 ; 50+50 ; 53+53 ; 72+38 ; 80+27; 83+422” BSP2”SteelStraight
AD20021245+45 ; 50+50 ; 53+53 ; 72+38 ; 80+27; 83+422” BSP2” 1/2SteelStraight
A4511411220+20 ; 25+25 ; 30+301” 1/4 BSP1” 1/2BrassElbow 45°
A4511420030+301” 1/4 BSP2”BrassElbow 45°
A9011411220+20 ; 25+25 ; 30+301” 1/4 BSP1” 1/2BrassElbow 90°
A9011413430+301” 1/41” 3/4BrassElbow 90°
A9020020040+40 ; 45+45 ; 50+50 ; 60+30 ; 72+38 ; 80+272”2”BrassElbow 90°

BENT AXIS PISTON PUMPS WITH TWO OUTLETS | BID Series

REFERENCEPUMP DISPLACEMENT(cc/rot)THREADHOSEMATERIALSHAPE
AD11220038+37 ; 57+281” 1/2 BSP2”SteelStraight
AD11221280+38 ; 58+60 ; 70+661” 1/2 BSP2” 1/2SteelStraight
AD11230080+38 ; 58+60 ; 70+661” 1/2 BSP3”SteelStraight
A4511220038+37 ; 57+281” 1/2 BSP2”BrassElbow 45°
A9011220038+37 ; 57+281” 1/2 BSP2”BrassElbow 90°

GEAR PUMPS | B2 SERIES

REFERENCEPUMP DISPLACEMENT(cc/rot)THREADHOSEMATERIALSHAPE
AD03410012 ; 16 ; 20 ; 263/4” BSP1”SteelStraight
AD03411412 ; 16 ; 20 ; 26 ; 32 ; 393/4” BSP1” 1/4SteelStraight
AD03411232 ; 393/4” BSP1” 1/2SteelStraight
A4503411212 ; 16 ; 20 ; 26 ; 32 ; 393/4” BSP1” 1/3BrassElbow 45°
A9003411412 ; 16 ; 20 ; 26 ; 32 ; 393/4” BSP1” 1/4BrassElbow 90°
A9003411232 ; 393/4” BSP1” 1/2BrassElbow 90°

GEAR PUMPS | B3 Series, B3D Series, PV Series

REFERENCEPUMP DISPLACEMENT(cc/rot)THREADHOSEMATERIALSHAPE
AD03411238; 453/4” BSP1” 1/2SteelStraight
AD10011252 ; 61 ; 701” BSP1” 1/2SteelStraight
AD10020052 ; 61 ; 701” BSP2”SteelStraight
AD11420082 ; 102 ; 116 ; 1251” 1/4 BSP2”SteelStraight
A4503411238; 453/4” BSP1” 1/2BrassElbow 45°
A4510011252 ; 61 ; 701” BSP1” 1/2BrassElbow 45°
A4510020052 ; 61 ; 701” BSP2”BrassElbow 45°
A4511420082 ; 102 ; 116 ; 1251” 1/4 BSP2”BrassElbow 45°
A9003411238; 453/4” BSP1” 1/2BrassElbow 90°
A9010010052 ; 611” BSP1” 1/4BrassElbow 90°
A9010011252 ; 611” BSP1” 1/2BrassElbow 90°
A9010013452 ; 61 ; 701” BSP1” 3/4BrassElbow 90°
A90114134821” 1/4 BSP1” 3/4BrassElbow 90°
A9011420082 ; 102 ; 116 ; 1251” 1/4 BSP2”BrassElbow 90°

GEAR PUMPS | B35 Series

REFERENCEPUMP DISPLACEMENT(cc/rot)THREADHOSEMATERIALSHAPE
AD10020064 ; 741” BSP2”SteelStraight
AD11420084 ; 94 ; 104 ; 114 ; 124 ; 134 ; 1541” 1/4 BSP2”SteelStraight
A4510020064 ; 741” BSP2”BrassElbow 45°
A4511420084 ; 94 ; 104 ; 114 ; 124 ; 134 ; 1541” 1/4 BSP2”BrassElbow 45°
A9010013464 ; 741” BSP1” 3/4BrassElbow 90°
A9011420084 ; 94 ; 104 ; 114 ; 124 ; 134 ; 1541” 1/4 BSP2”BrassElbow 90°

Note:  PUMP MAXIMUM SPEED SHOULD BE ALWAYS CONFIRMED (1cc/rot = 0.061 in3/rot

* Except for BHV pumps

** Only for BHV pumps

Additional information

Select the reference

AD112200, AD112212, AD100114, AD100112, AD100200, AD114200, AD112134, AD200200, AD200212, A45100114, A45100112, A45100200, A45114200, A45112200, A45200200, A90100114, A90100112, A90100134, A90100200, A90114134, A90114200, A90112200, A90200200, AD114114, AD114112, AD114134, AD112112, A45114112, A45112112, A90114114, A90114112, A90112112, AD112300, AD034100, AD034114, AD034112, A45034112, A90034114, A90034112, A90100100
